• Inventory number：84375
• Brand：Taikan

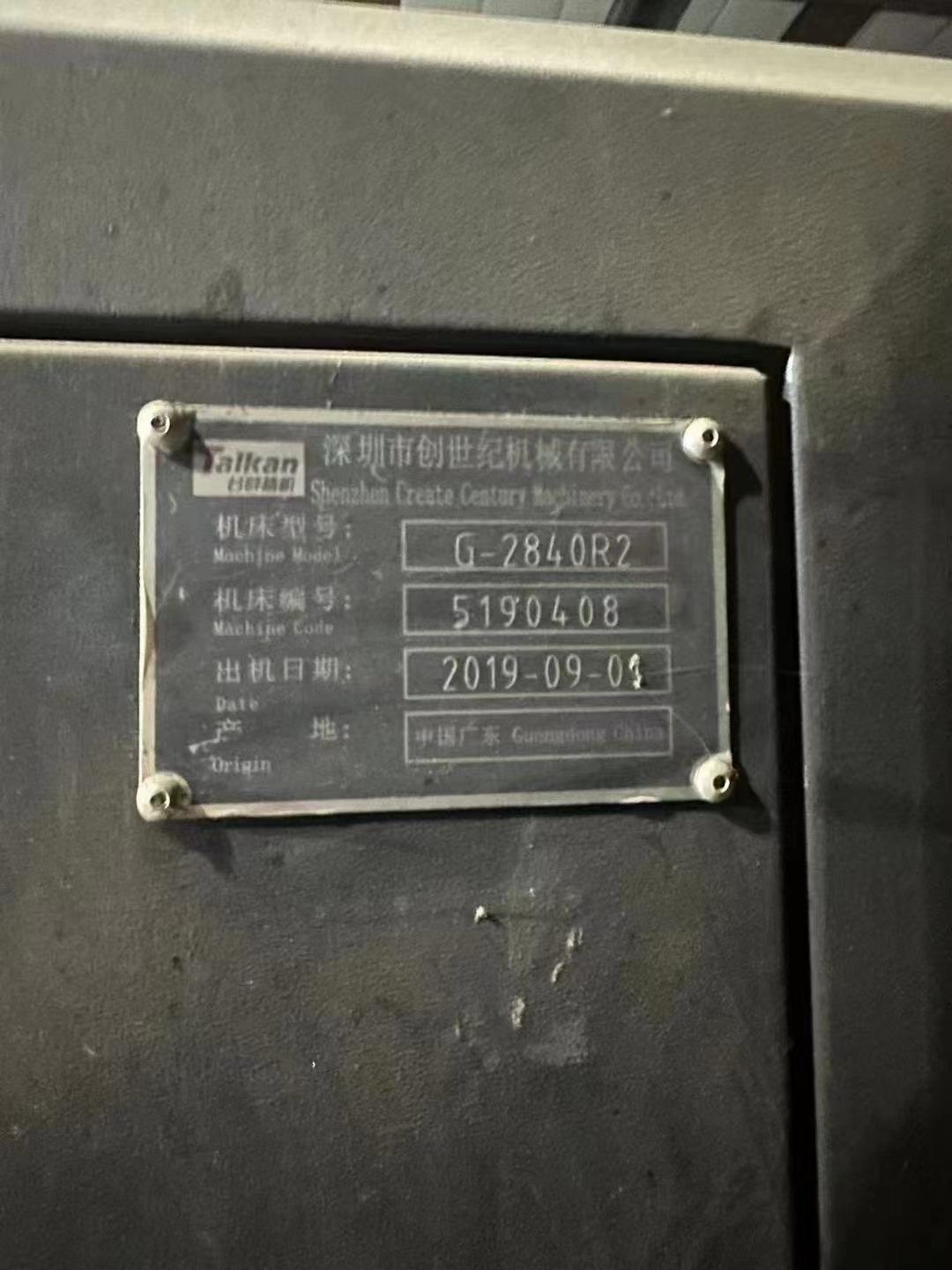

• Model：G-2840R2
• Origin：China
• Location：China
• Year：2019
• Create Time：2024-07-12

Specifications:

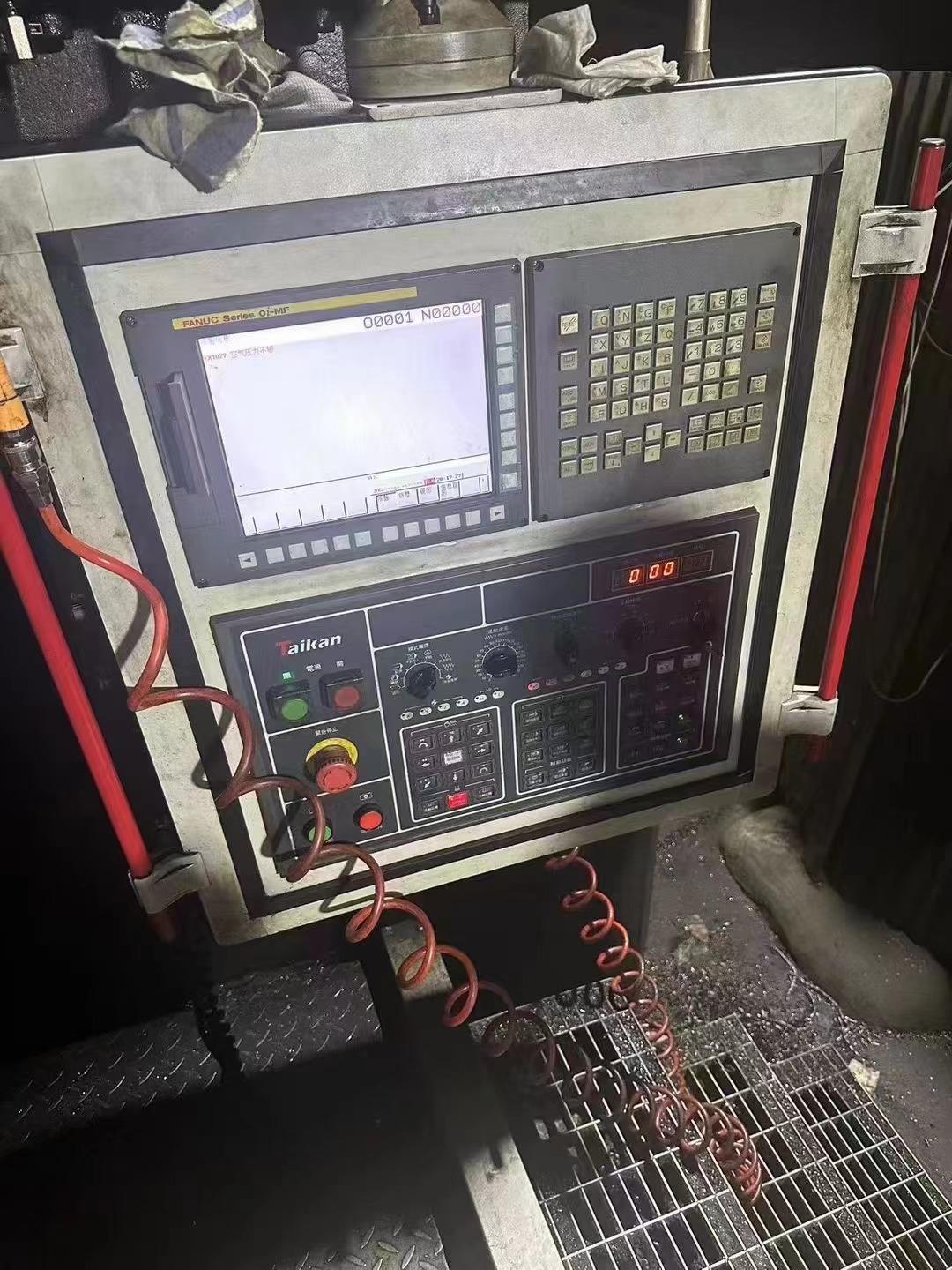

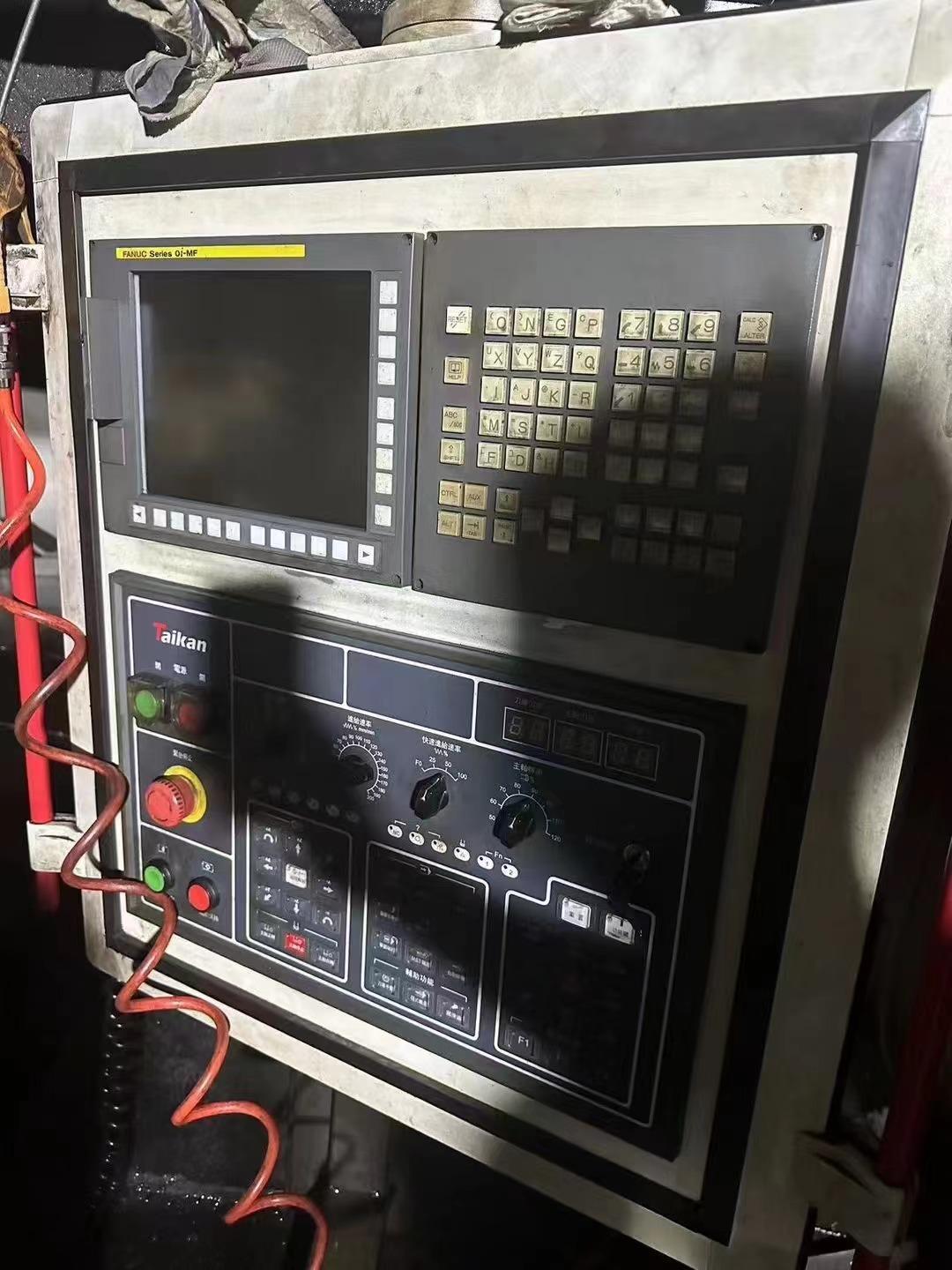

• CNC System: FANUC oi-MF

  Gantry width: 2800mm

  Gantry height: 1500mm

  With center flushing

  Three-axis travel :4200*2880*1000mm

  Distance between spindle nose to worktable: 200-1200mm

  Effective gantry width :2750mm

  Worktable size :2000*4000mm

  Worktable load :20000kg

  T-slot width :28mm

  Spindle motor power :22/26kw

  Spindle speed: 20-6000rpm

  Ram cross section: 400*400mm

  Cutting feed rate range: 8000*8000*8000mm/min

  Fast moving rate :12000*12000*16000mm/min

  Dimensions: 11000*5800*5150mm

  Weight: 5000kg
