• Inventory number：92232
• Brand：WINTEC

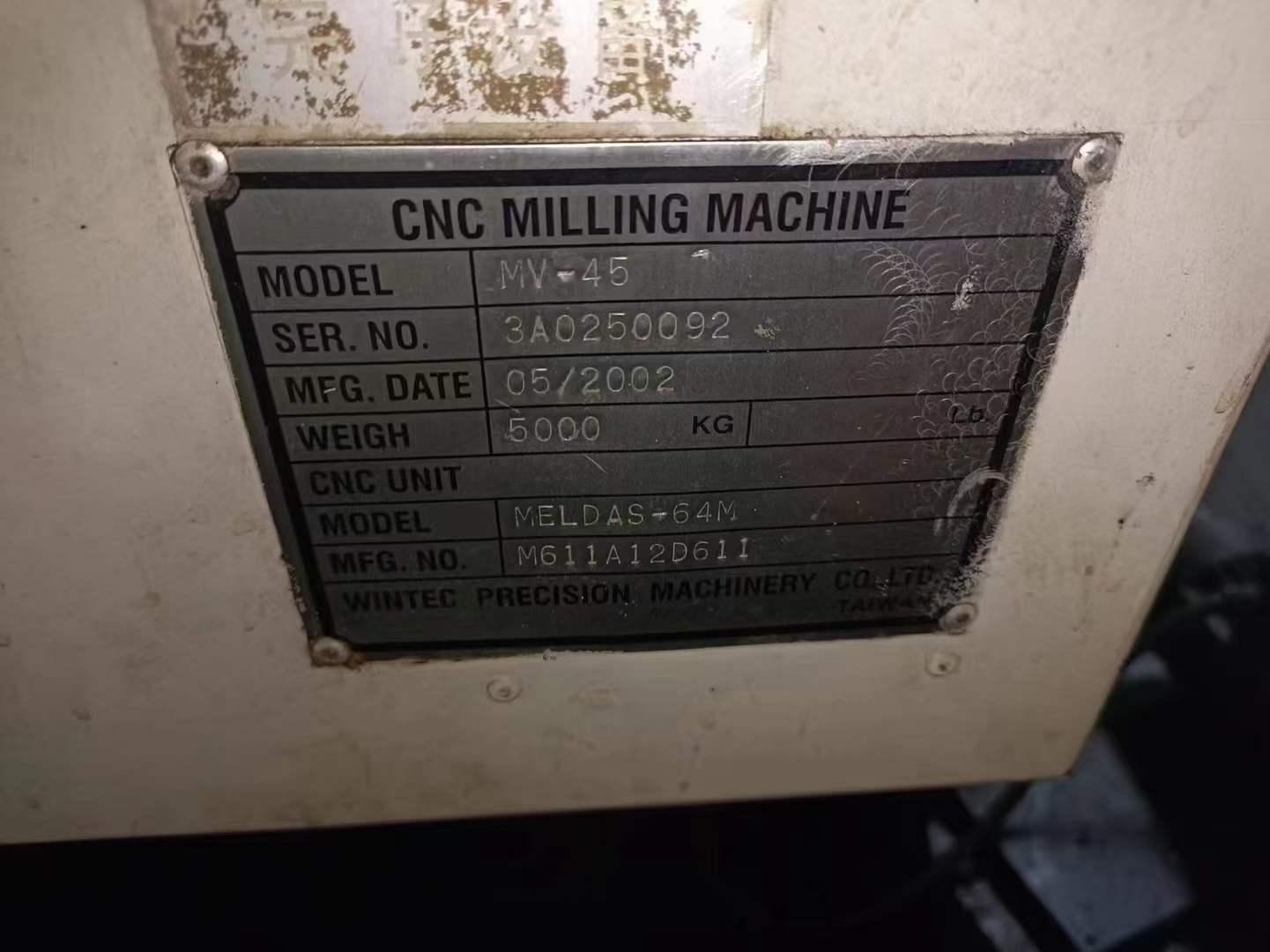

• Model：MV-45
• Origin：Taiwan of China
• Location：China
• Year：The Ex-factory date 2002
• Create Time：2024-06-27

Specifications:

• WorkWorktable size :1000X500mm

  travel X/Y/Z axes :850X550X580mm

  WorkWorkWorktable load :750kg

  Distance from nose end of spindle to workWorktable surface :120-700mm

  spindle nose taper :BT40

  Distance from Distance from spindle center to column slide rail surface :600mm

  spindle motor :7.5kw/11kw

  Spindle speed :10000rpm

  Machine weight :5300kg

  Floor space :3800X3100X2650mm
