• Inventory number：92210

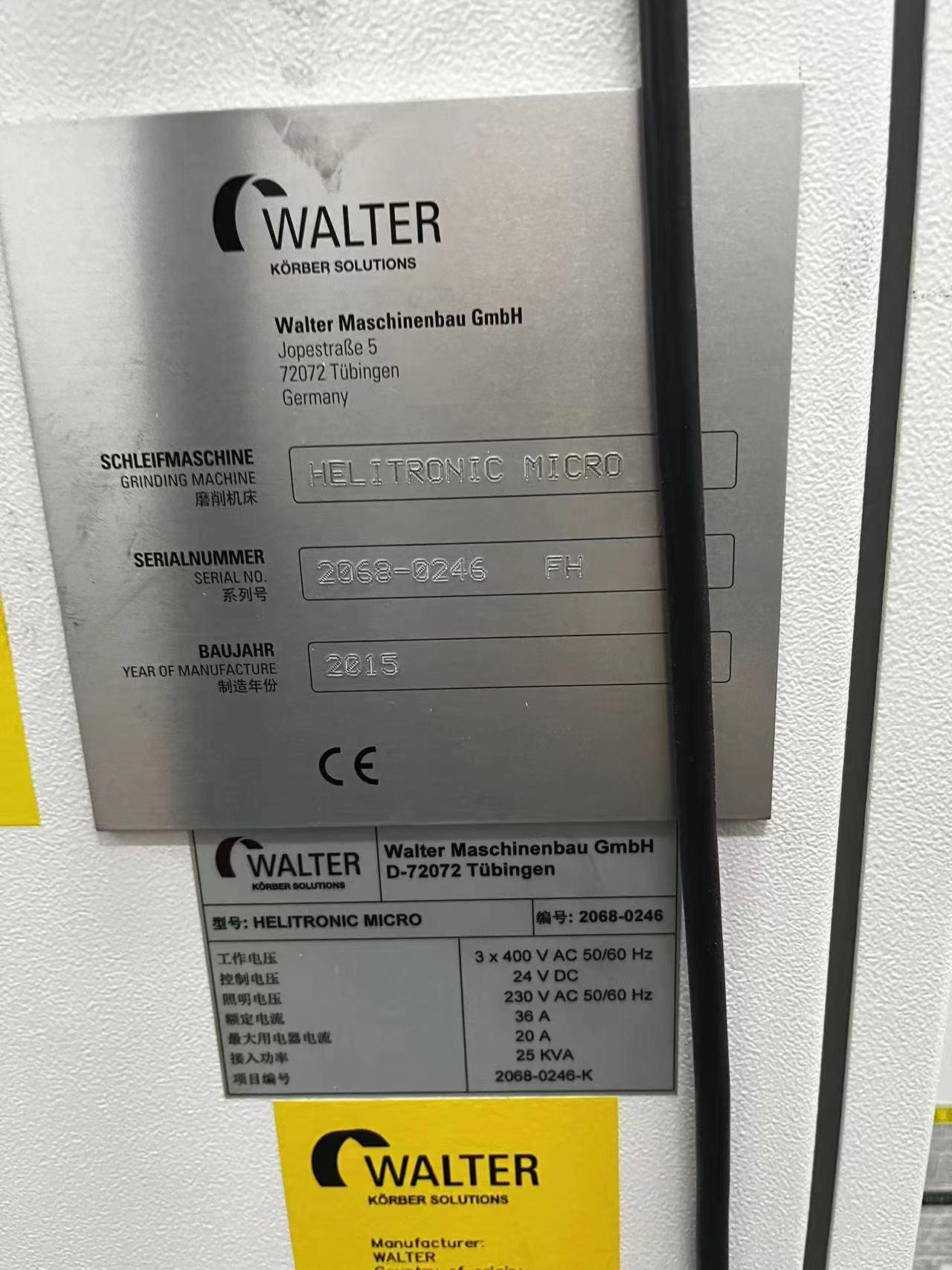

• Brand：WALTER
• Model：HELITRONIC MICRO
• Origin：Germany
• Location：China
• Year：The Ex-factory date 2015
• Create Time：2024-06-22

Specifications:

• X axis: 400mm

  X' Secondary spindle: 110mm

  Y-axis: 320mm

  Z-axis: 320mm

  Axis A: ∞

  B axis: 280°

  C axis can rotate Angle: 200°

  Linear precision: 0.0001mm

  Rotation precision: 0.0001°

  grinding wheel diameter: 150mm

  Output power: 1*5KW, 2*1.5KW

  Grinding Spindle speed: 0-10000rpm

  A-axis speed: 1000rpm

  Main machine (including Cooling CNC System) weight: 6000kg

  Load (at 400V/50Hz) :25KVA

  workpiece diameter: 0.5-12.7mm

  Grinding workpiece diameter: 2.5-12.7mm

  workpiece length: 120 (300) mm

  Cutting length: 70mm
