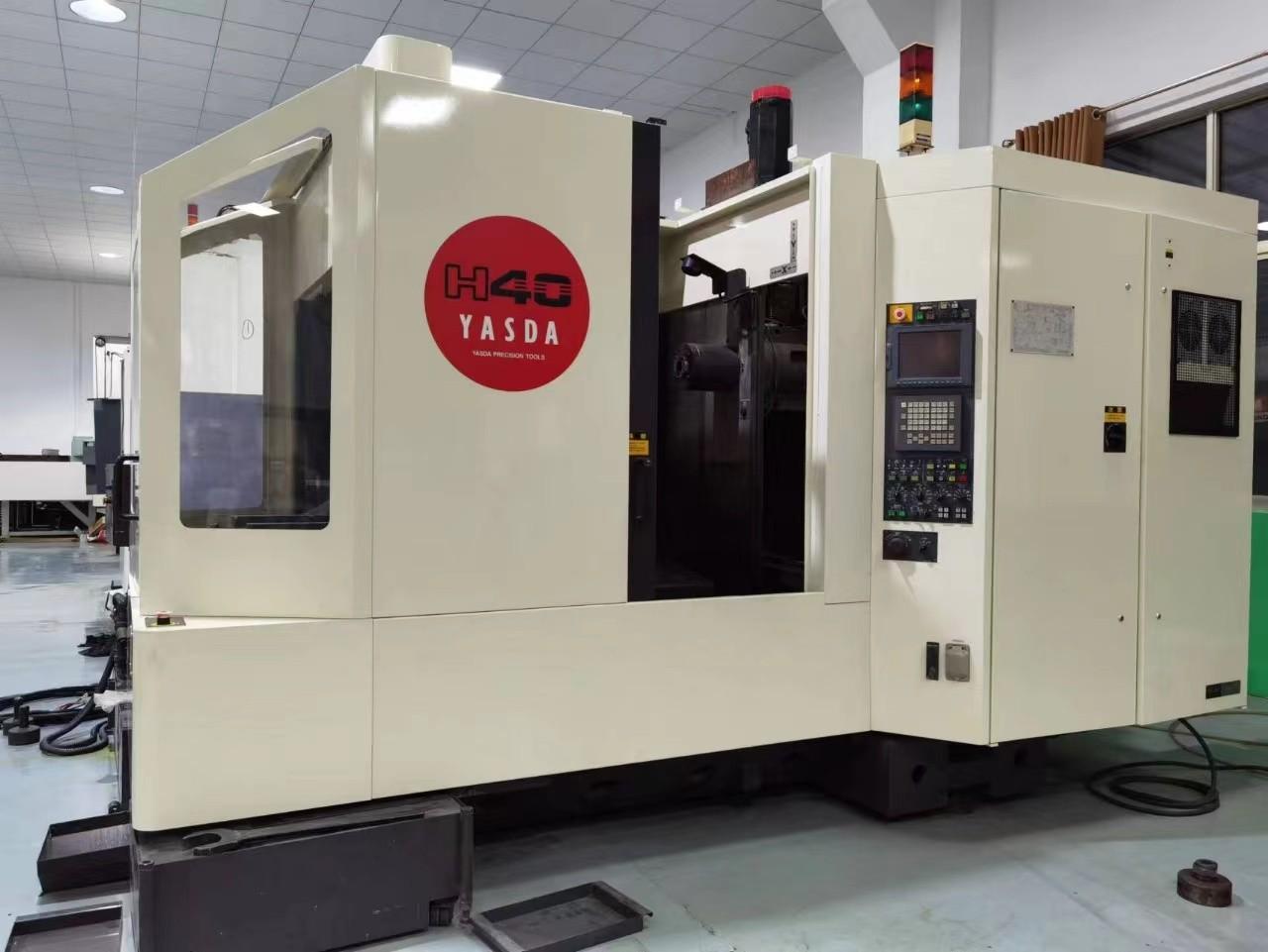

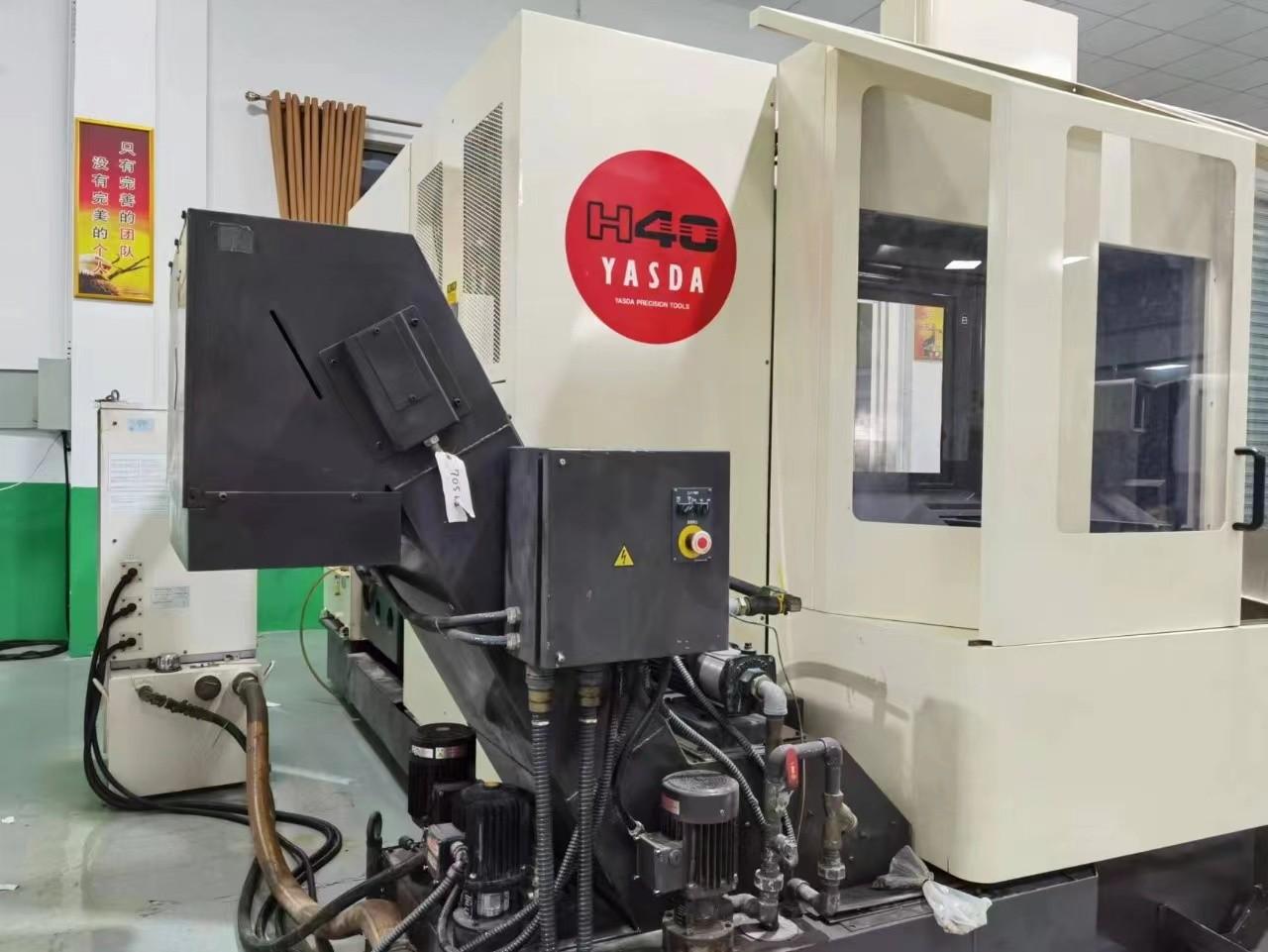

YASDA   H40
Horizontal Machining centre
[Product Information:]
  • Inventory number：470728
  • Brand：YASDA
  • Model：H40
  • Origin：Japan
  • Location：China
  • Year：2003
  • Create Time：2024-06-17

Specifications:

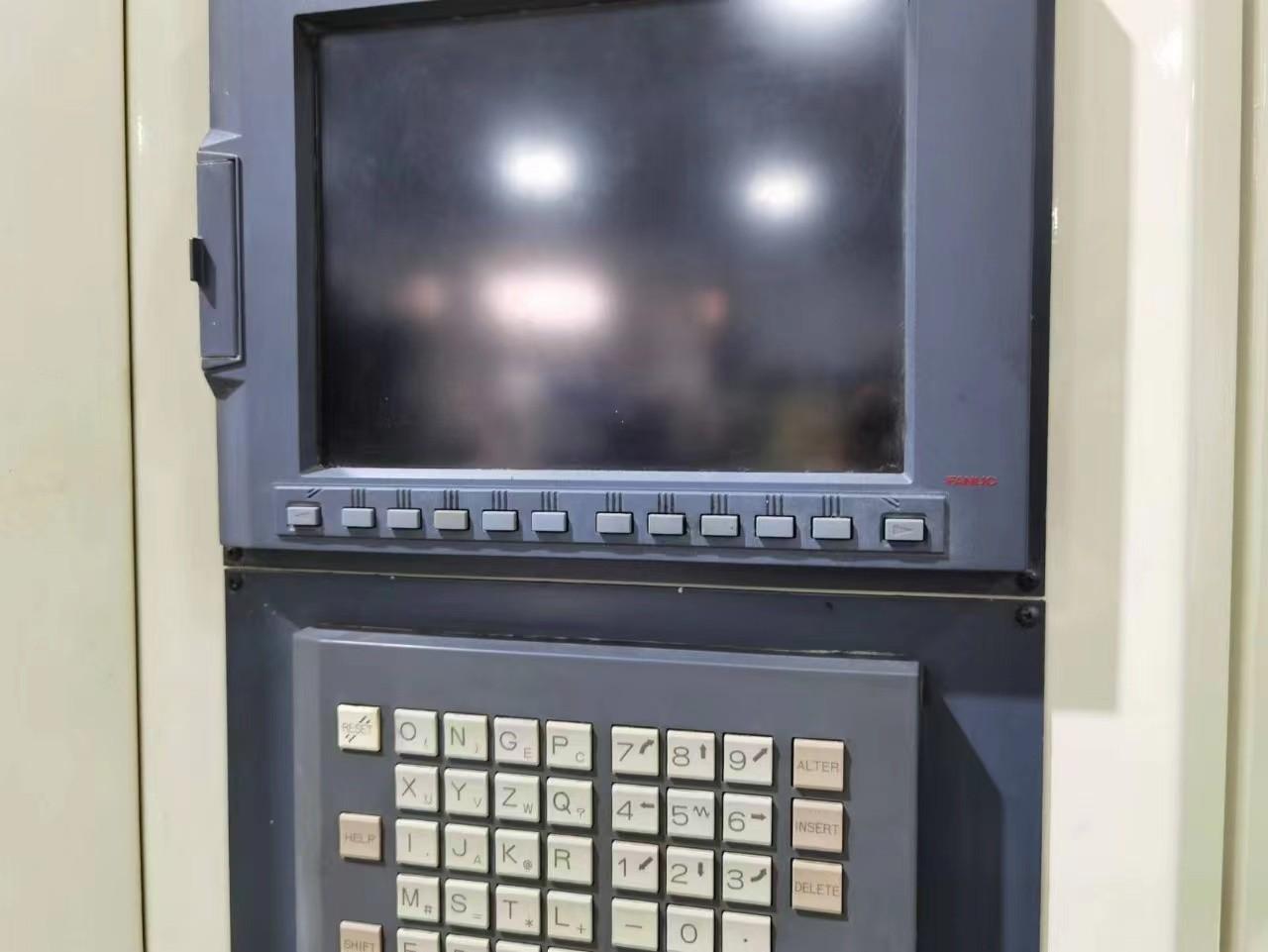

  • System :FANUC 16i

    Three axes travel :650*560*560mm

    Worktable size :400*400mm

    Number of positions :2

    Worktable load :400KG

    Distance from spindle to worktable :90-650mm

    Maximum rotating diameter :600mm

    Worktable indexing resolution: 0.001 degrees

    Spindle speed :12000rpm

    Tool holder type :BT40

    Number of tools: 60

    Fast moving rate: 40m/min

    Maximum tool length :300mm

    Maximum tool weight :7KG

    Machine weight: 10000KG
