Specifications:

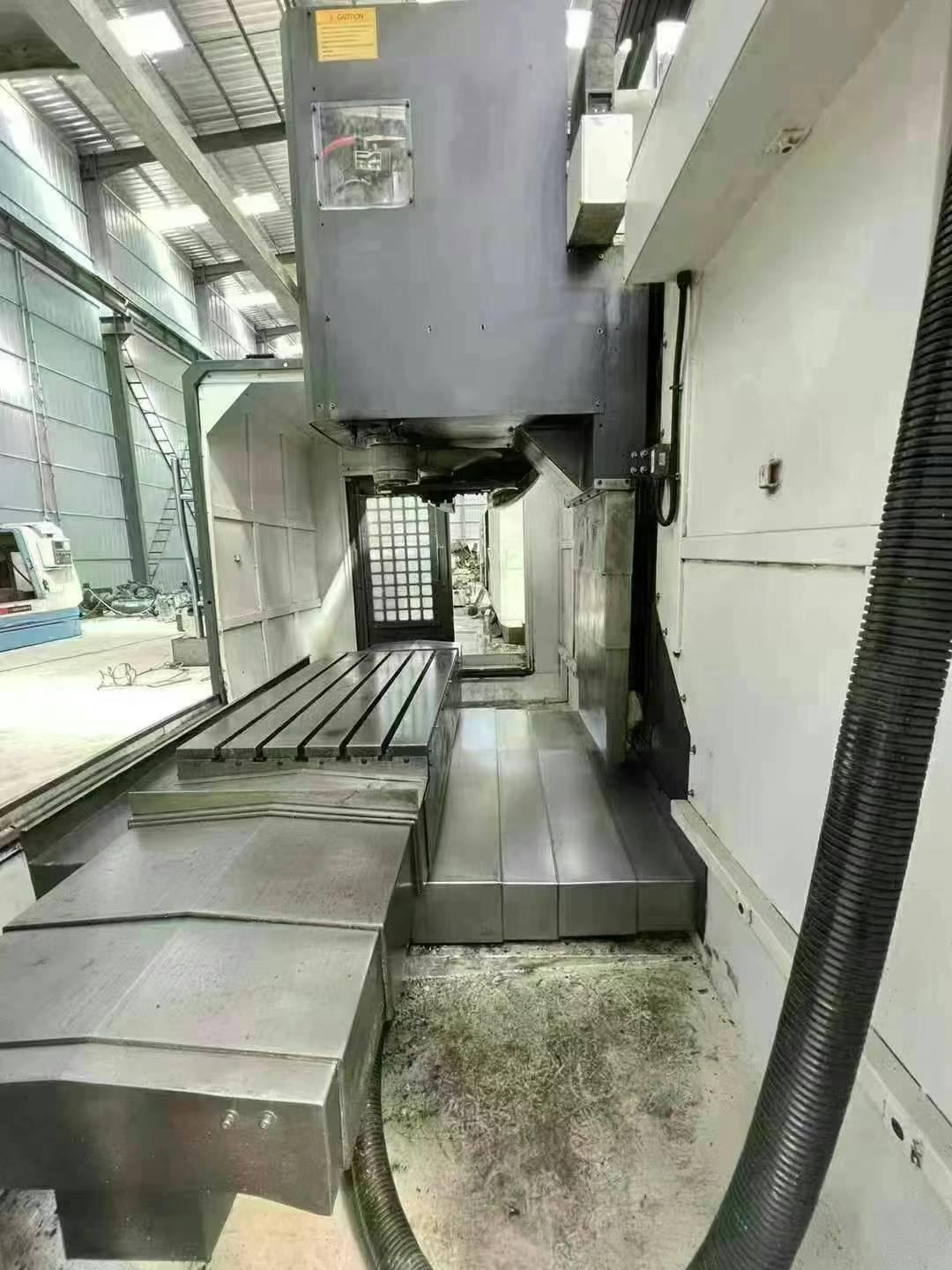

WorkWorktable size: 1150x600mm
three-axis travel: 1000*600*600mm
WorkWorktable load: 1000kg
Distance from nose end of spindle to WorkWorktable: 110-710mm
Distance from Distance from spindle center to column rail: 660mm
Distance from WorkWorktable center to column rail: 965mm
T-slot: 18x5x100mm

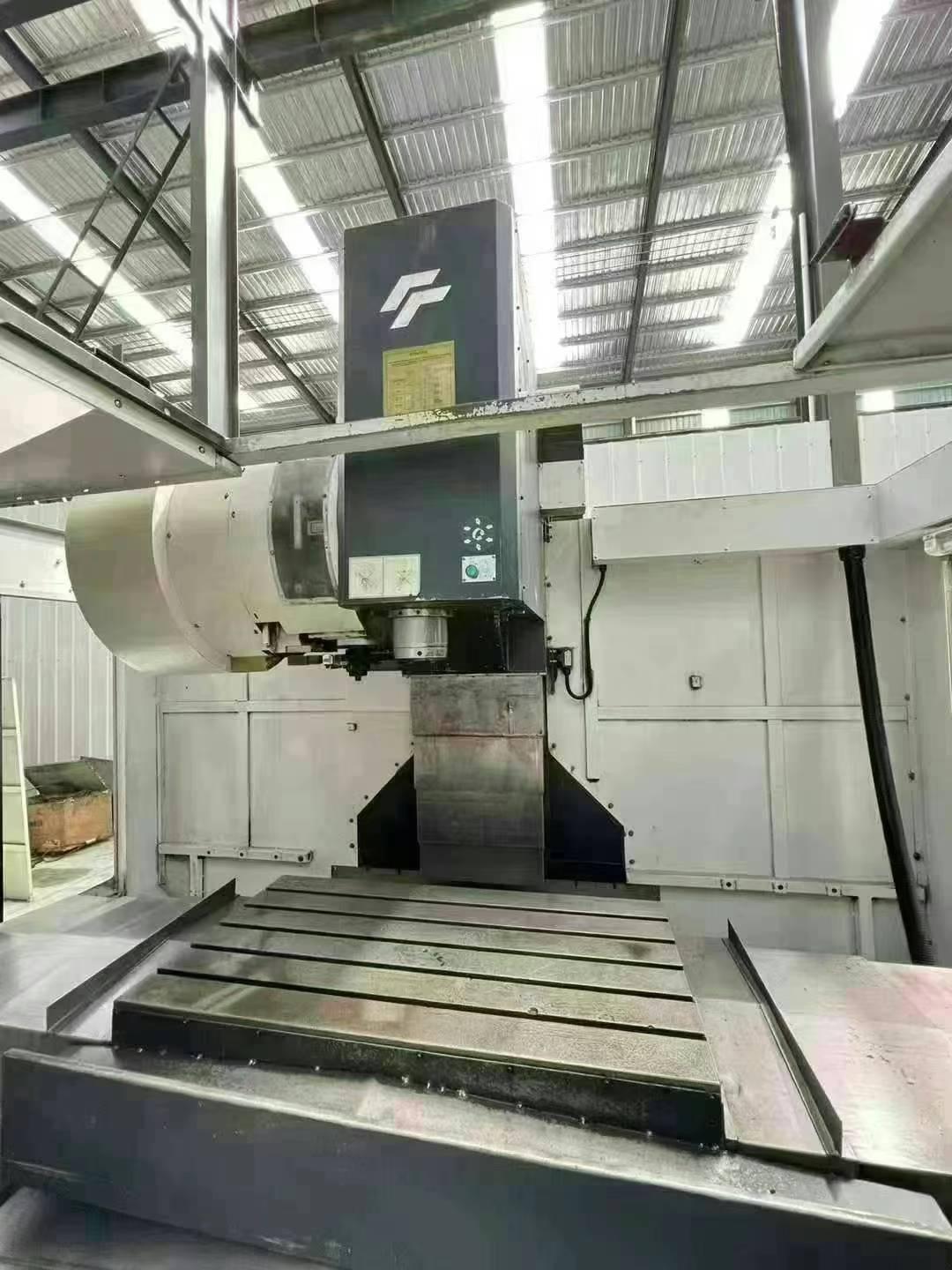

spindle: BT40
Spindle speed: 8000rpm
Spindle diameter: 70mm
Main motor power: 7.5-11kw
machine tool Footage: 3180x2185x2900mm
machine tool weight: 7000kg
