• Inventory number：410556
• Brand：Walter

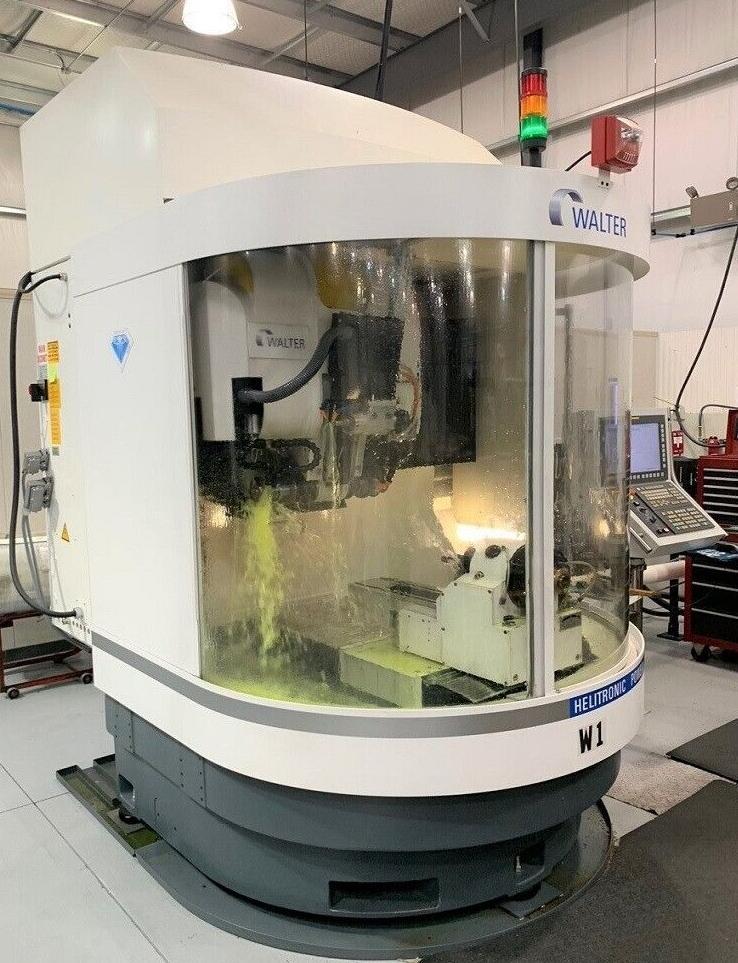

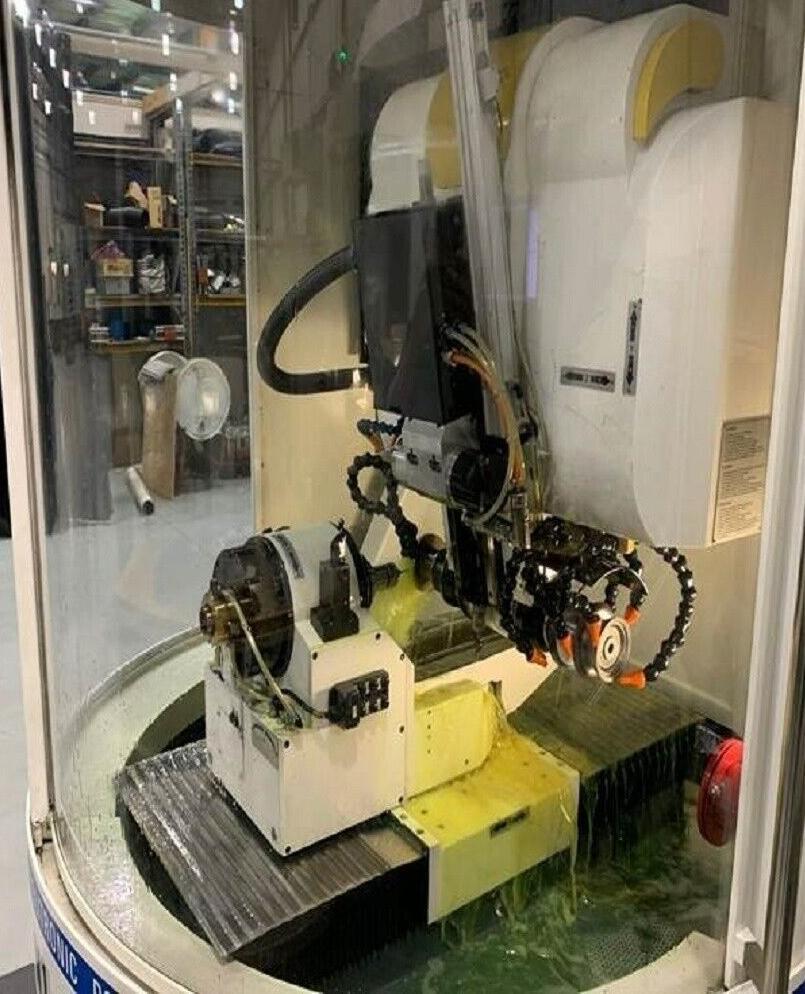

• Model：Helitronic Power Diamond
• Origin：Germany
• Location：China
• Year：2014
• Create Time：2024-06-14

Specifications:

• System: Fanuc

  X-axis: 320 mm

  Y-axis: 460 mm

  Z-axis: 660 mm

  C-axis: +/- 200°

  X/Y/Z fast feed rate: 15/15/15 m/min

  Linear resolution: 0.0001 mm

  Arc angle resolution: 0.001°

  Maximum grinding wheel diameter: 200 mm

  Electric wheel diameter range: 6-200 mm

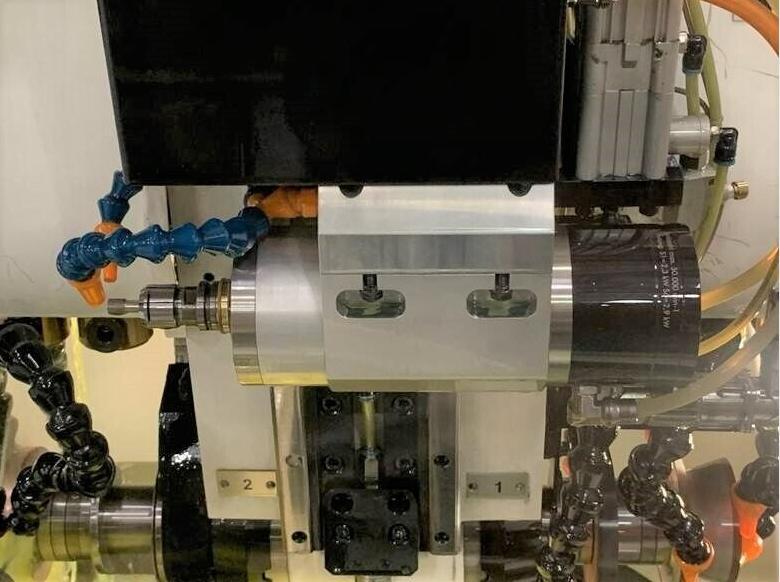

  Grinding spindle speed: 10500rpm

  Minimum workpiece machining diameter: 3 mm

  Maximum workpiece machining diameter: 400 mm

  Maximum workpiece length: 350 mm

  Grinding tool surface length: 280 mm

  Maximum workpiece weight: 50 kg

  Grinding spindle power: 11.5kW

  Connection load: 400 volts / 50Hz / 25 KVA

  Weight: 4600 kg

  Machine footage: 3530 x 2930 x 2273mm
