Specifications:
Worktable size: 700*400mm
Three axes travel: 600*390*320mm
T-slot: 9 x 18 x 125mm
Distance from spindle nose to worktable: 180-500mm
Fast feed rate: 60000mm/min
Cutting feed rate: 30000mm/min
Tool weight: 2.5kg
Tool length: 200mm
Tool diameter: 50/65mm
Load: 250kg
Machine dimension: 18200*2600*2600mm
Machine weight: 3100kg
CNC system: Mitsubishi M80
Spindle speed: 20000rpm

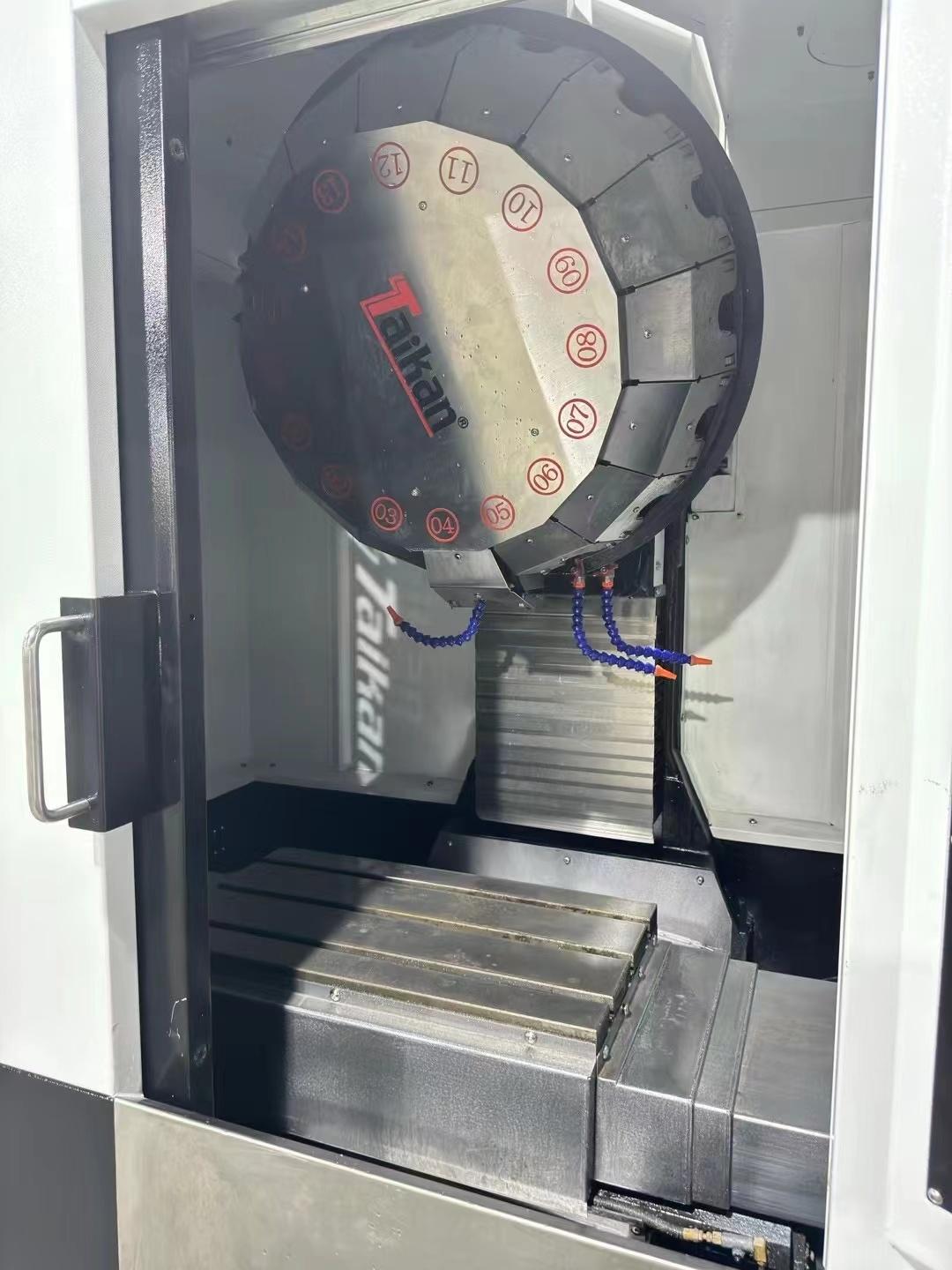

Tool magazine: 16
