• Inventory number：92069
• Brand：Okamoto
• Model：OGM-330NClll
• Origin：Japan
• Location：China
• Year：The Ex-factory date 2012
• Create Time：2024-06-05

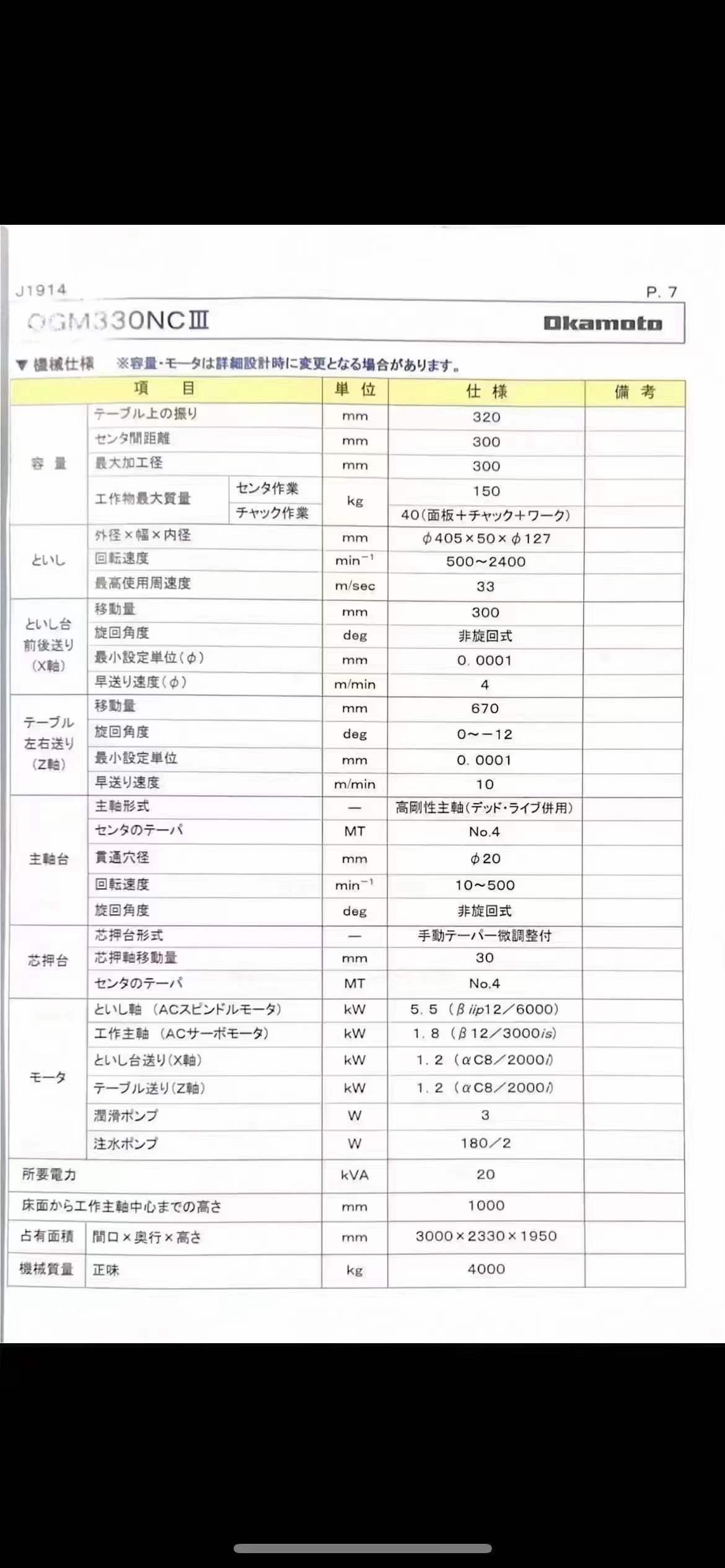

Specifications:

• Rotating diameter: 320mm

  Distance between centers: 300mm

  Maximum machining  diameter: 300mm

  Maximum load mass between centers: 150kg

  grinding wheel size: Phi 405X50X Phi 127

  Spindle speed: 2400rpm

  grinding wheel full travel: 300mm

  grinding wheel Fast feed rate: Phi 4m/min

  Minimum setting unit (diameter) of grinding wheel Worktable: 0.0001

  WorkWorktable full travel: 670mm

  Minimum setting unit of WorkWorktable: 0.0001mm

  Worktable Fast feed rate: 10m/s

  Worktable rotation Angle: 0° ~ 12°

  Spindle type: high rigidity spindle

  Workhead: MT,No.4

  Through hole diameter 20mm

  Speed 10~500rpm  non-cycle

  Tailstock: MT,No.4

  Center axis travel: 30mm

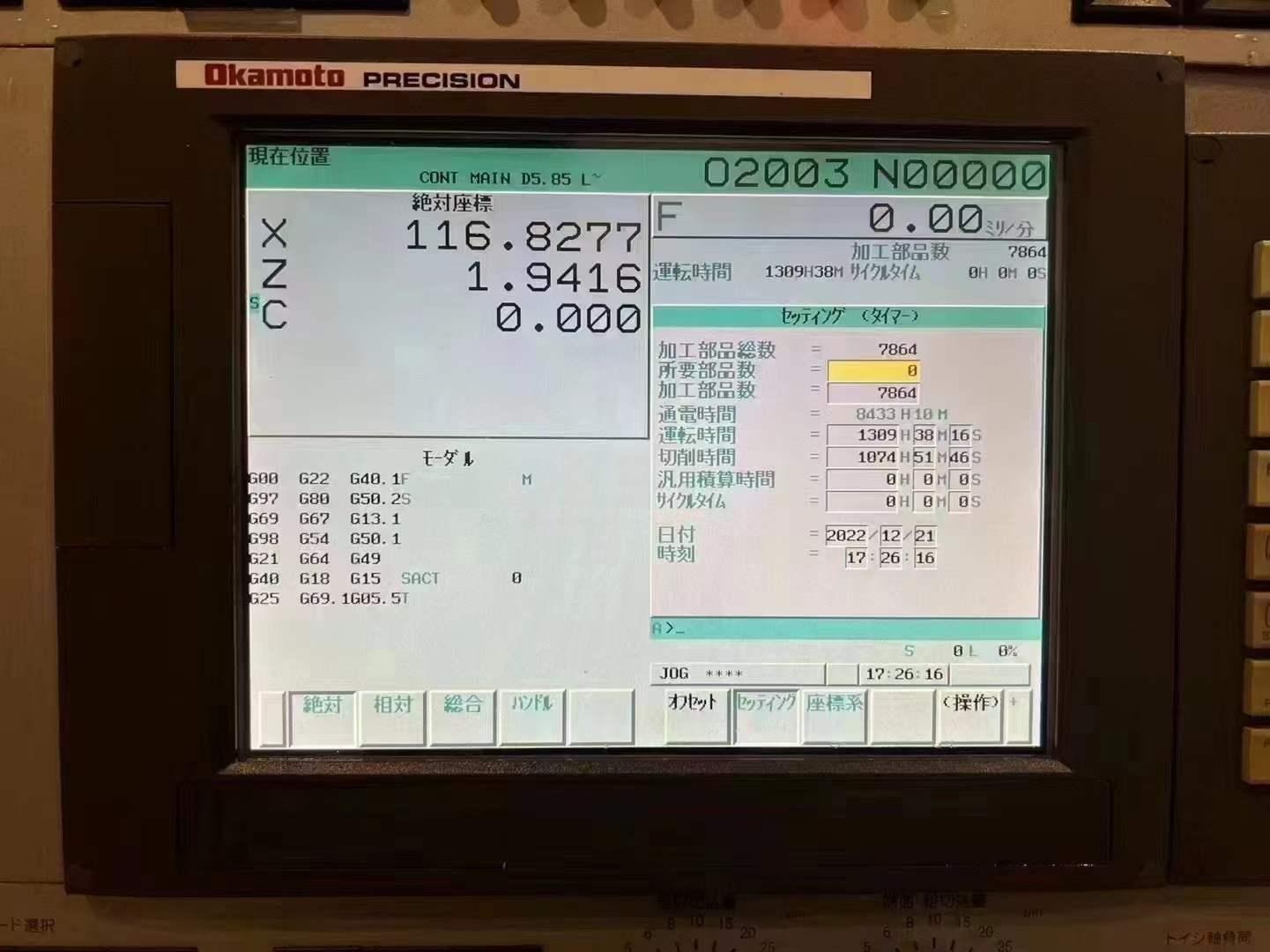

  Working hours: 1309h
