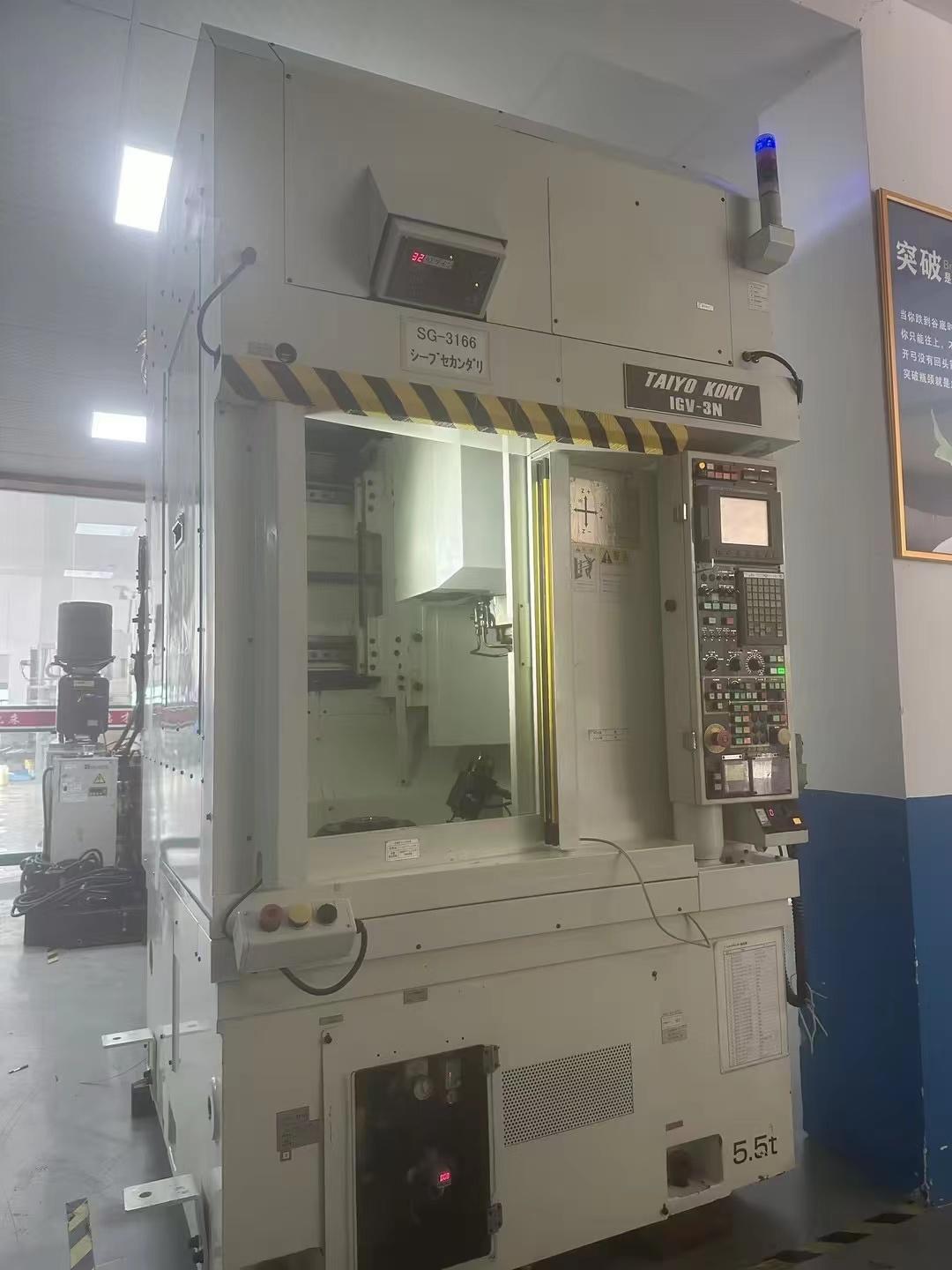

• Inventory number：10786
• Brand：TAIYOKOKI
• Model：IGV-3N
• Origin：Japan
• Location：China
• Year：
• Create Time：2024-05-14

Specifications:

• XZ axis travel: 1000*325mm

  C-axis: servo

  spindle resolution: 325 resolution

  spindle drive mode: electric spindle

  grinding wheel diameter width Internal diameter of 80*25* 31.75mm

  Sand wheel shaft speed: 18000rpm

  Grinding travel: 350*300mm

  Rotation diameter of workWorktable: 380 (14.9)

  Grindable through hole: 25-250 (1.0-9.8)

  可磨削的外径：300 (11.8)

  可磨削的长度：最大150 (Max.5.9)

  磨内孔精度：1um以内

  Tolerance can be sWorktable: within 2um

  Minimum feed: 0.0001mm

  WorkWorktable size: medium 350

  lead rail mode: Linear guideway

  Drive mode per shaft: screw + synchronous belt drive

  排屑方式： 冲水式磁铁分离器

  机床结构：立式磨床

  Footage: 1400*2800*2600(mm)

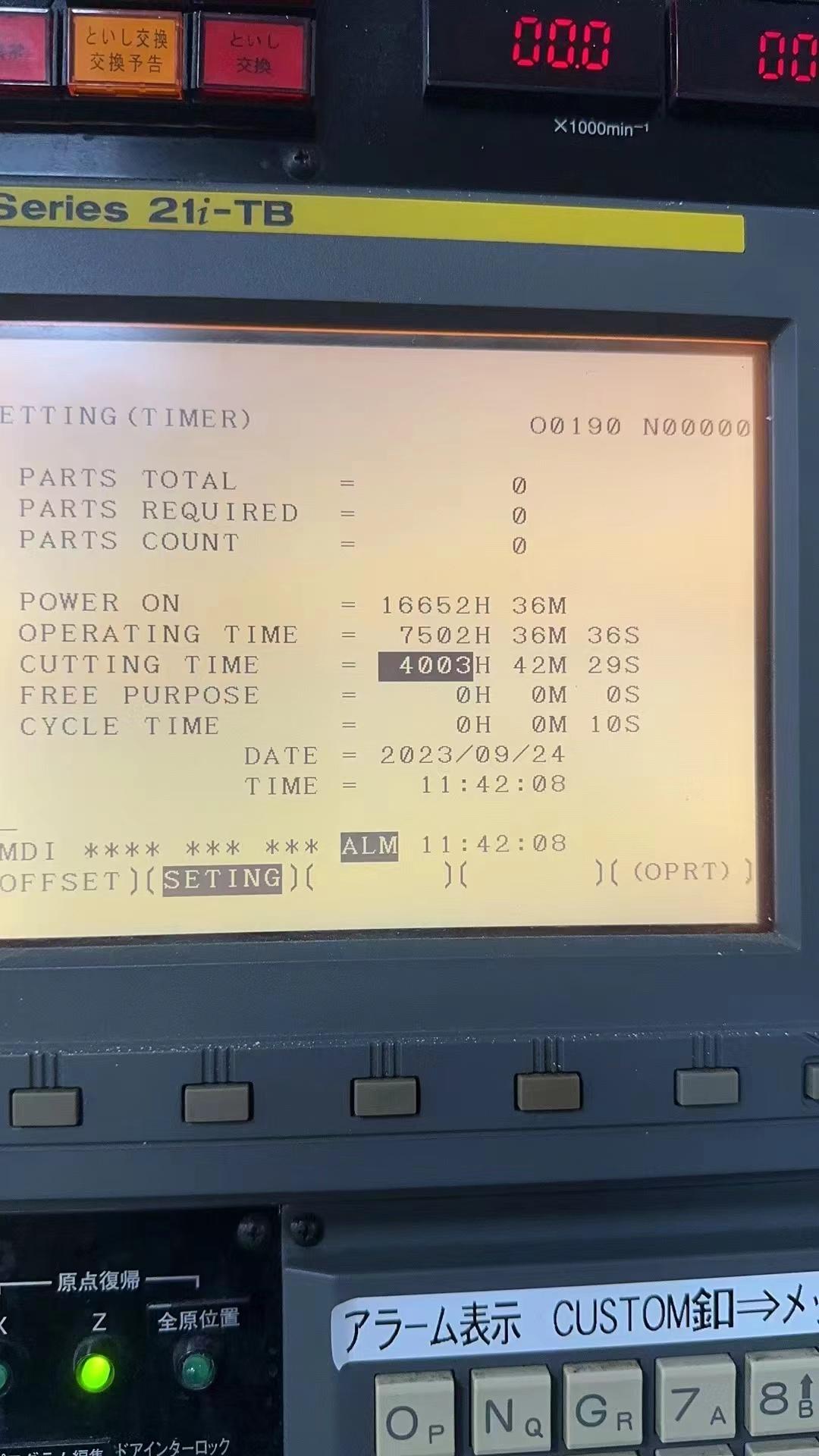

  Power on time: 16652H

  Running time: 7502H
