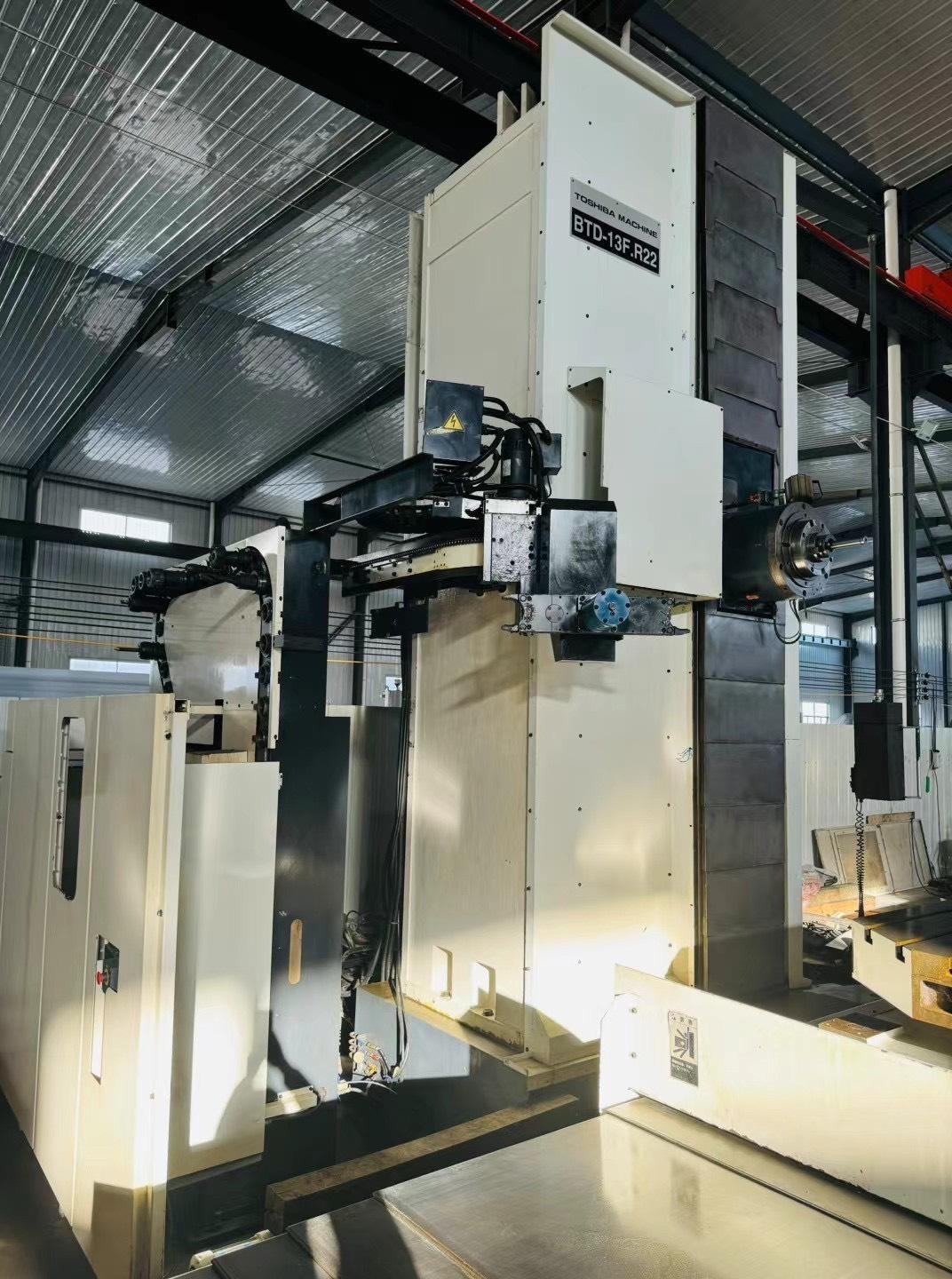

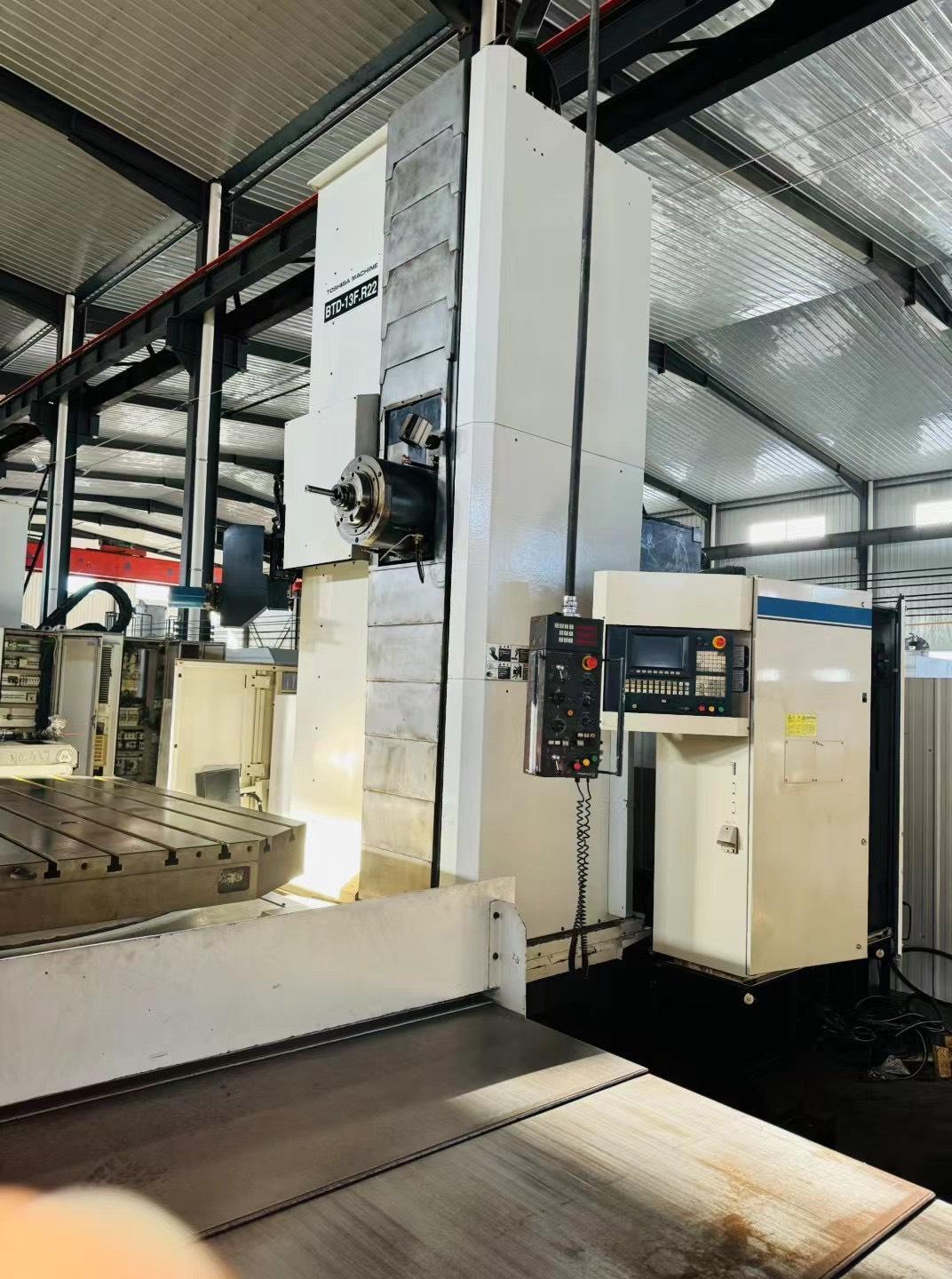

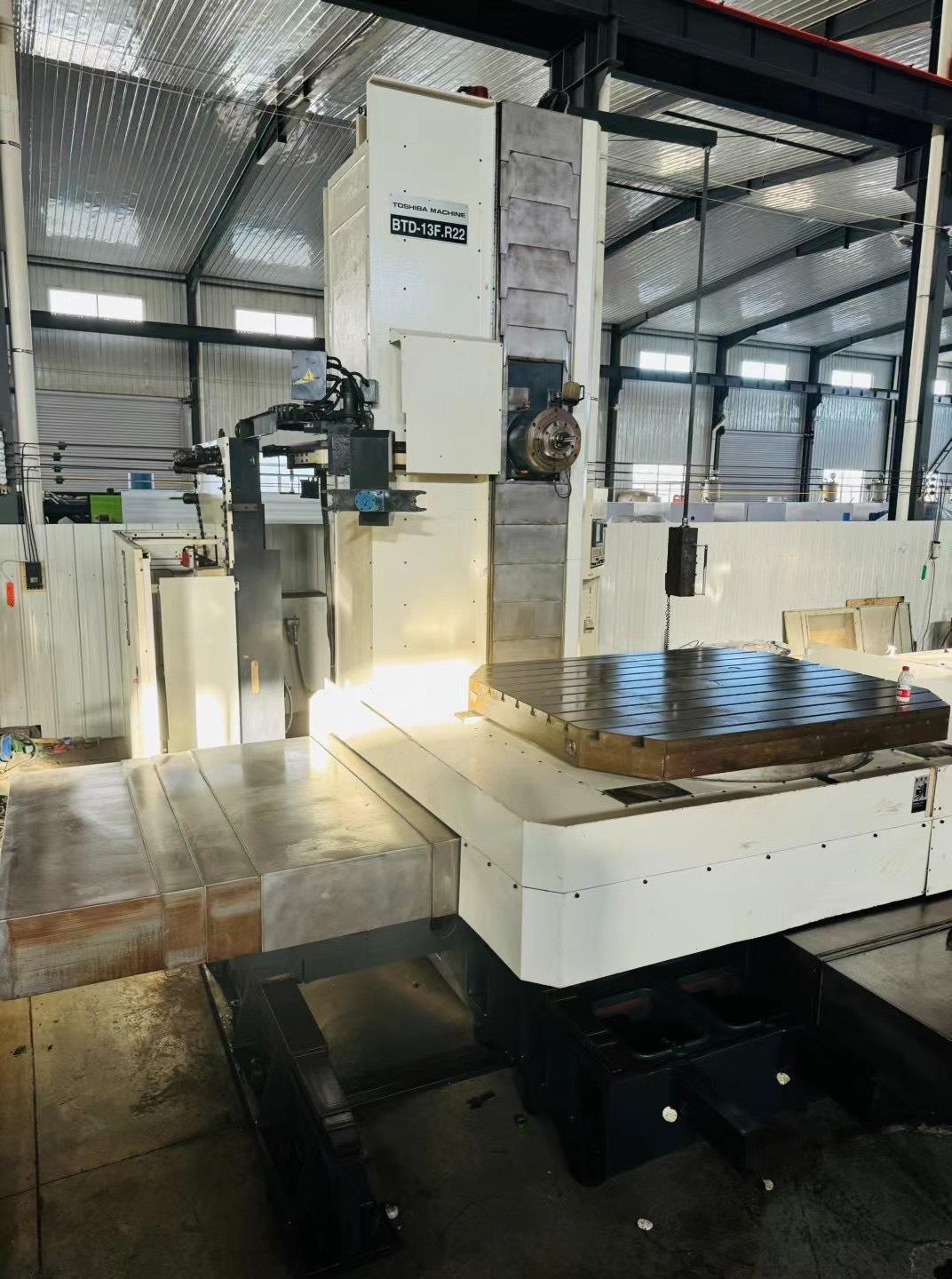

Toshiba   BTD-13F.R22
Boring and milling machine
[Product Information:]
  • Inventory number：60862
  • Brand：Toshiba
  • Model：BTD-13F.R22
  • Origin：Japan
  • Location：China
  • Year：
  • Create Time：2024-04-23

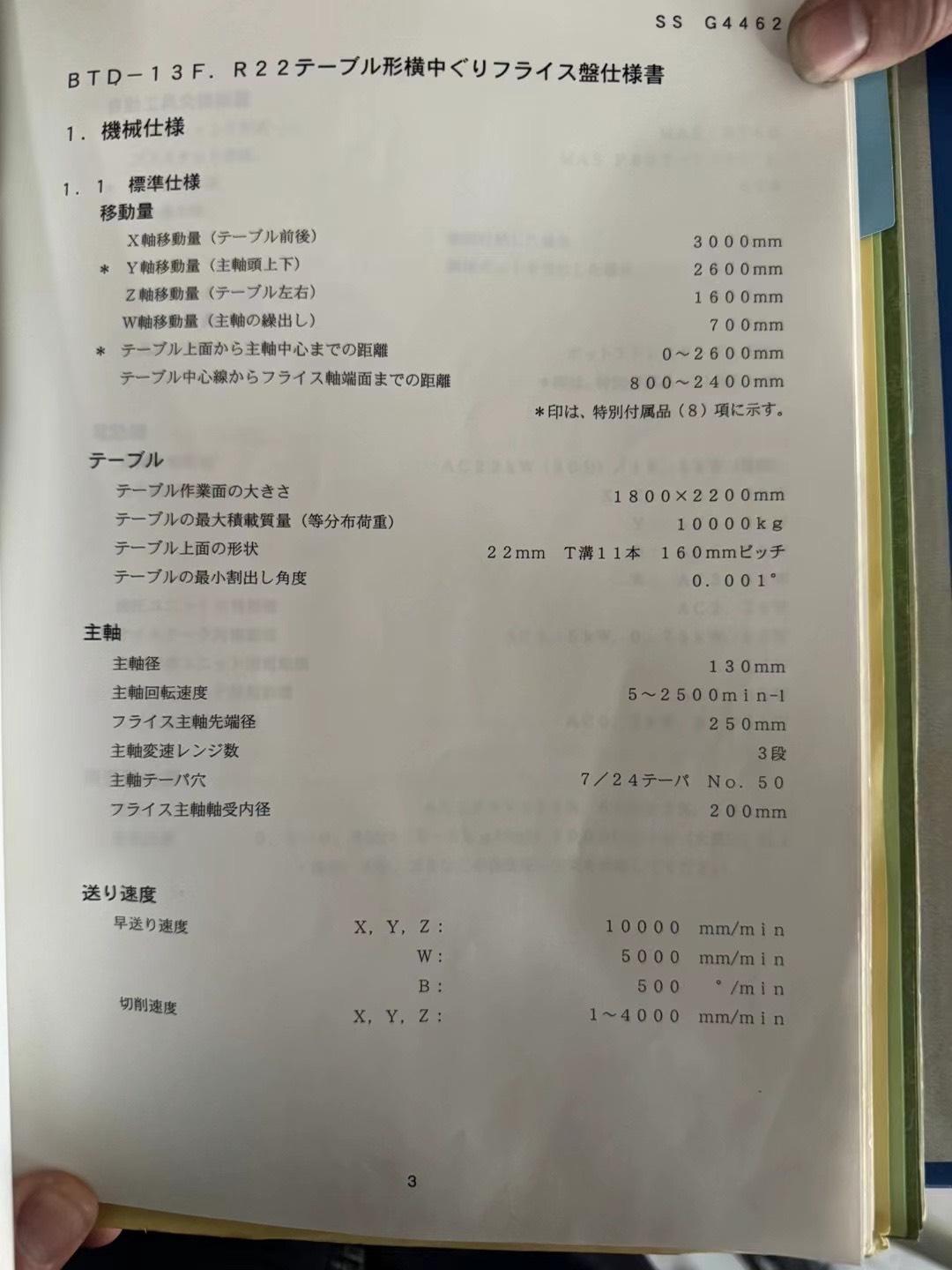

Specifications:

  • X-axis travel: 3000mmY axis travel: 2600mm

    Z-axis travel: 1600mm

    W-axis travel: 750mm

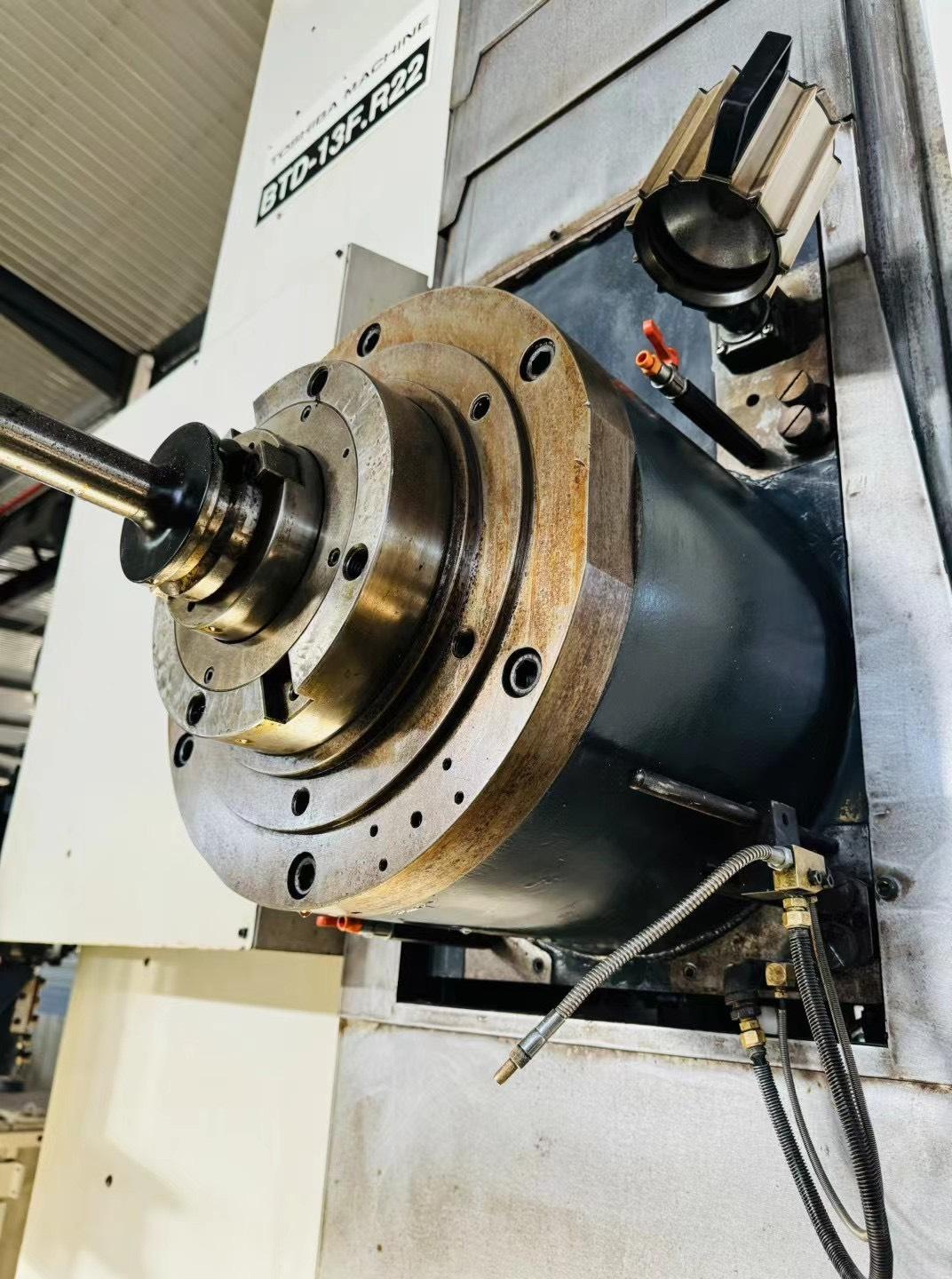

    Spindle diameter: 130mm

    Spindle speed: 5-2500rpm

    X/Y/Z axes fast feed rate: 10000mm/min

    W-axis fast feed rate: 5000mm/min

    X/Y/Z axes cutting feed rate: 1-4000mm/min

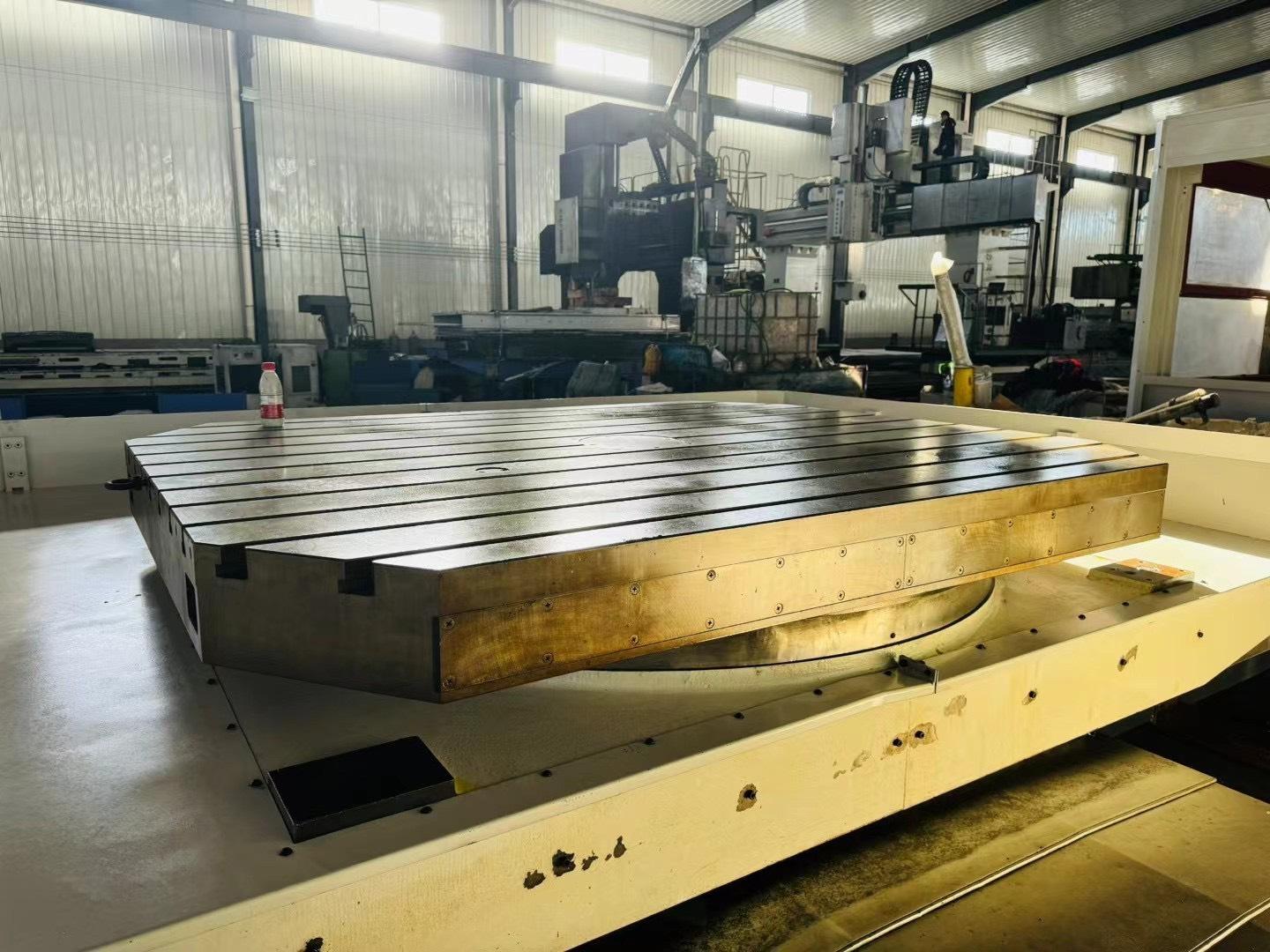

    Worktable size: 1800*2200mm

    BT50 spindle

    Tool magazine: 60

    Machine dimension: 7160*7010*5100mm

    Machine weight: 34000kg

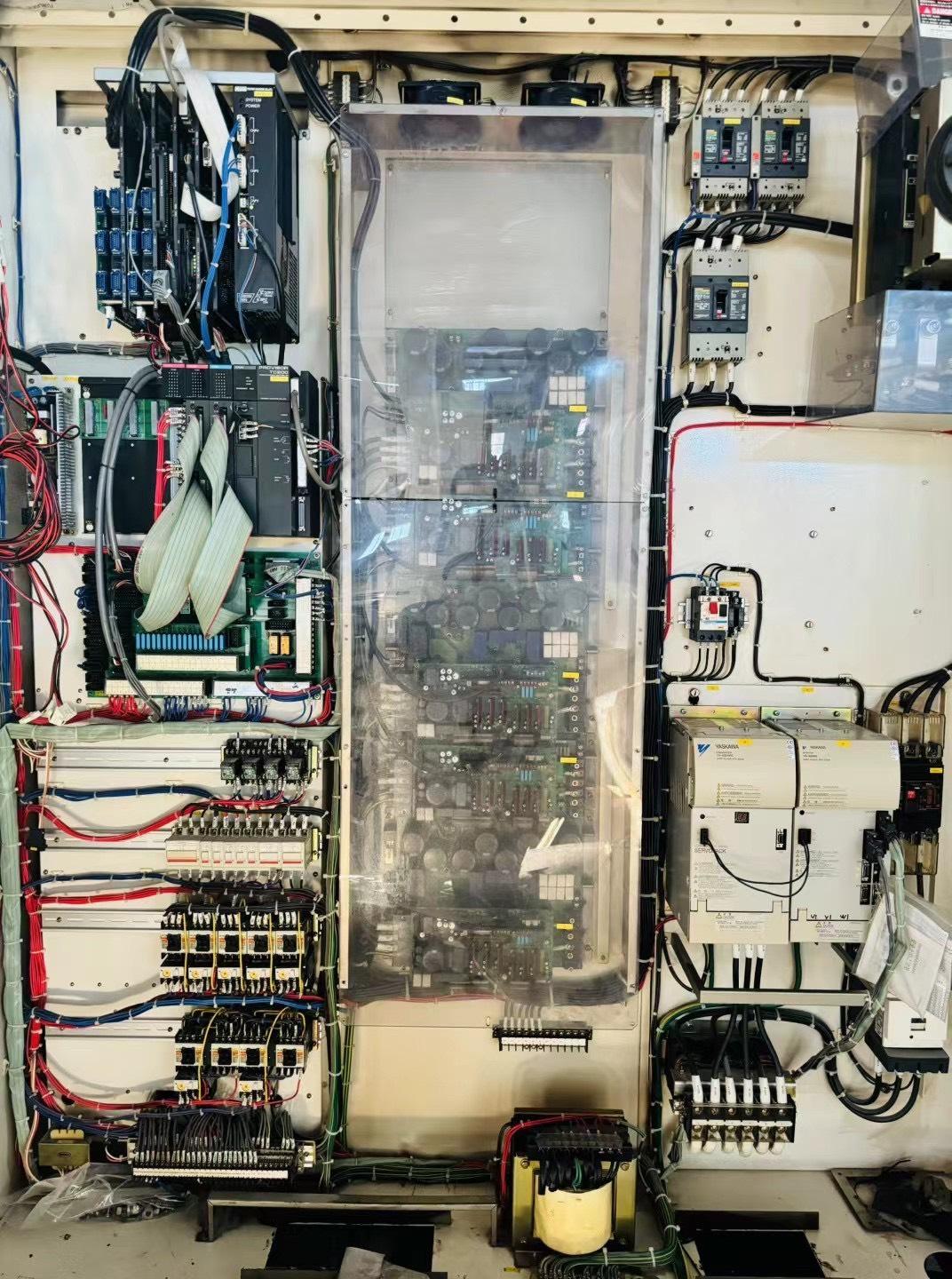

    Toshiba 888-3 CNC system

    Full close loop glass scale

    With five-sided milling head
