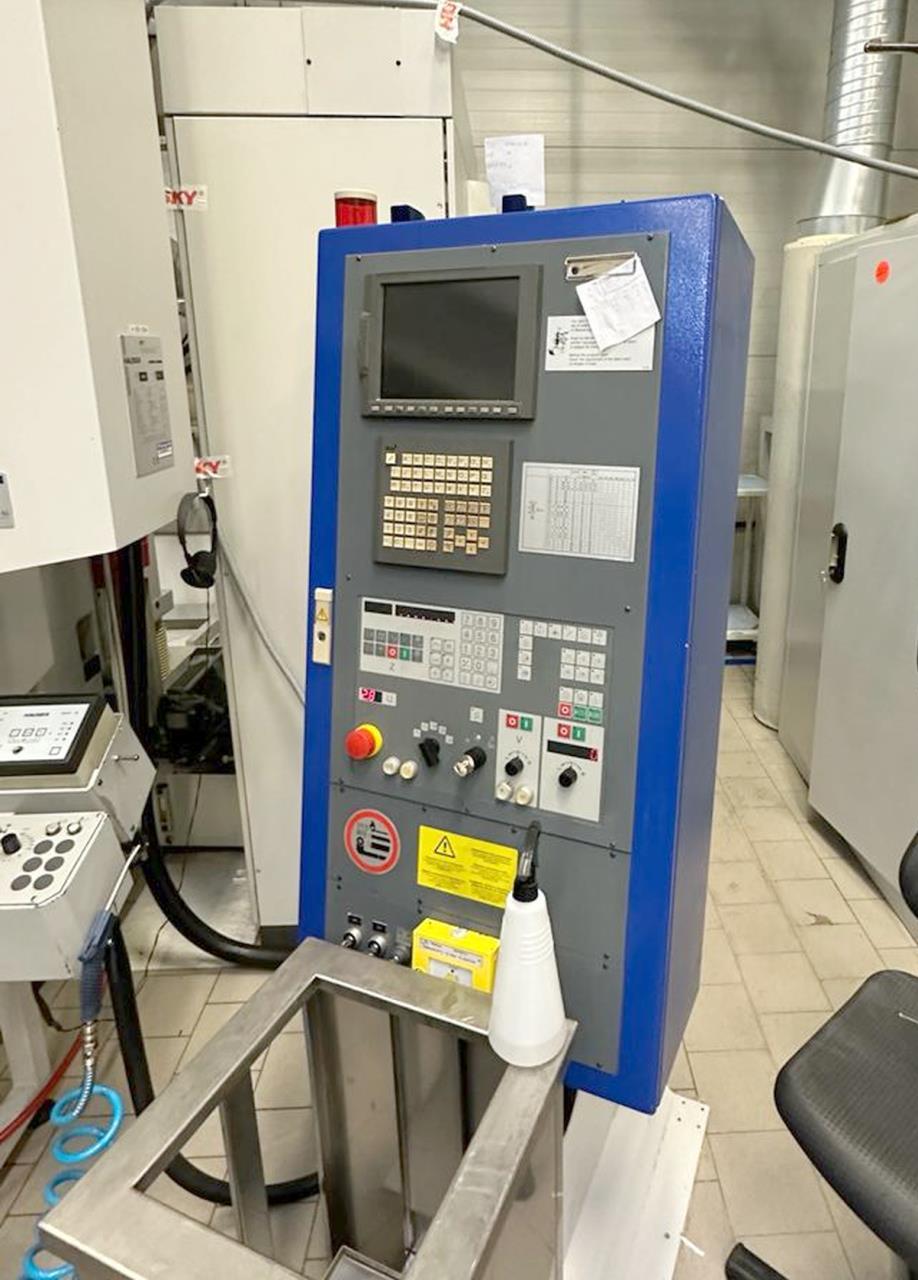

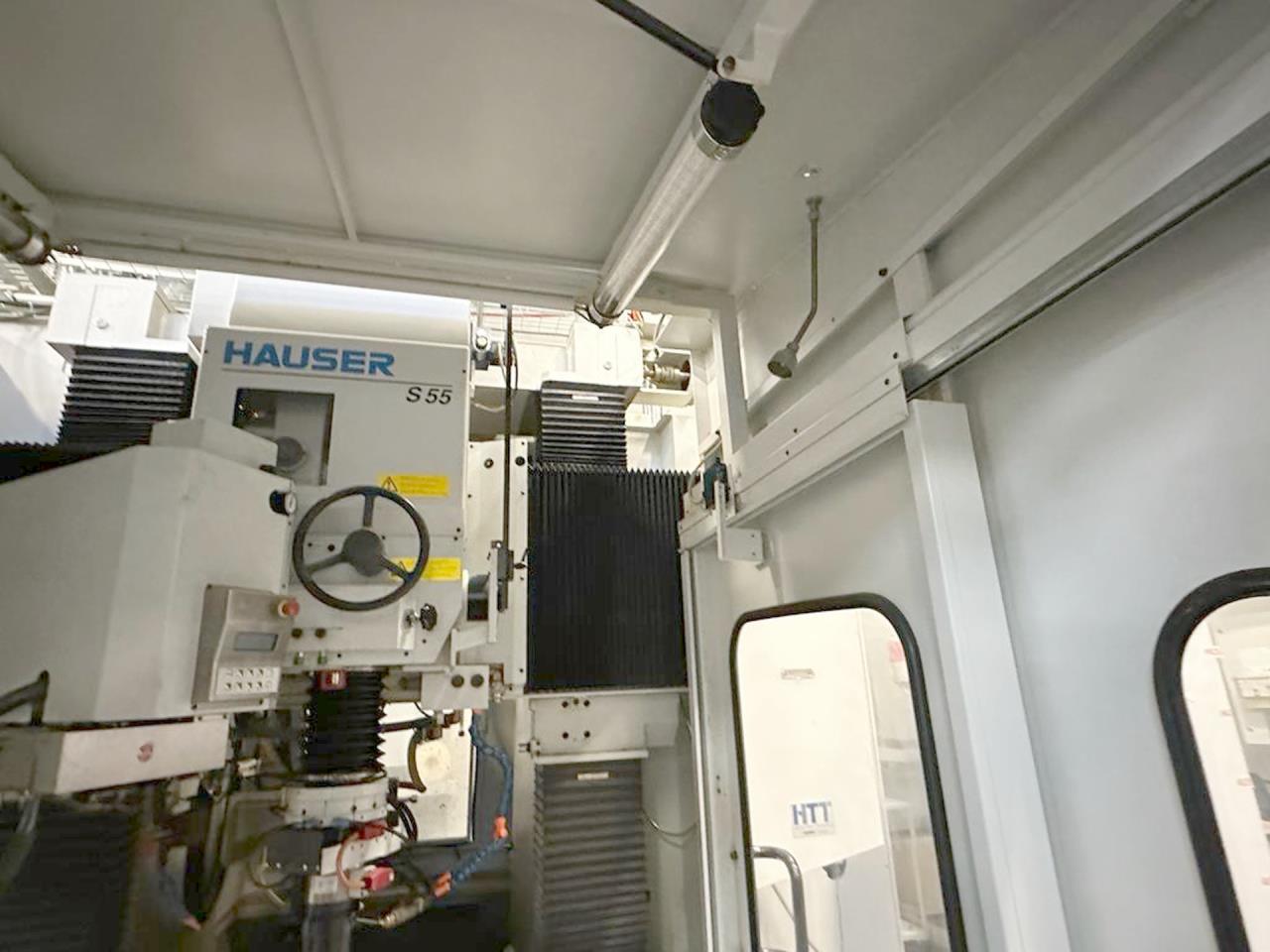

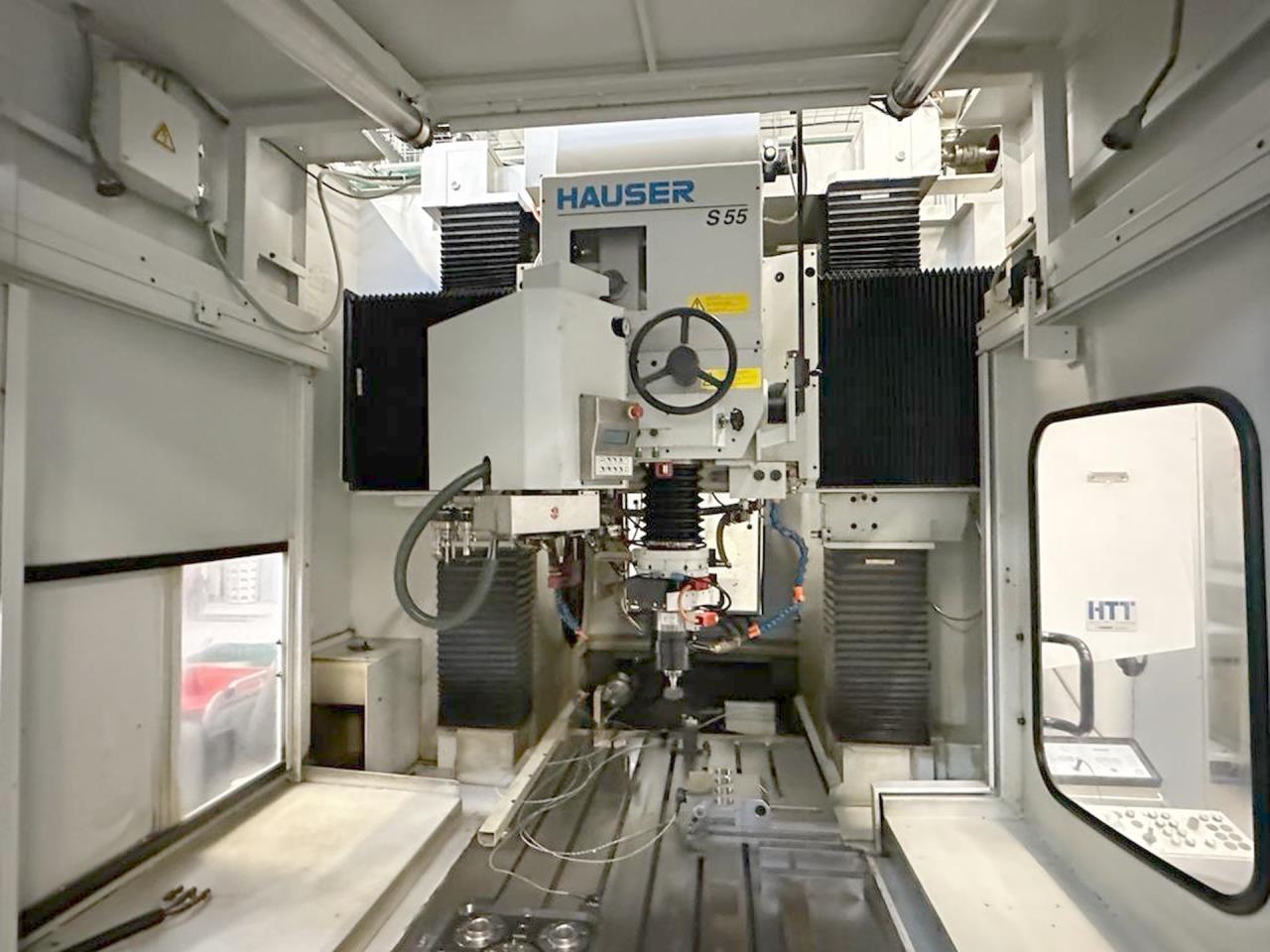

Specifications:
2 columns execution

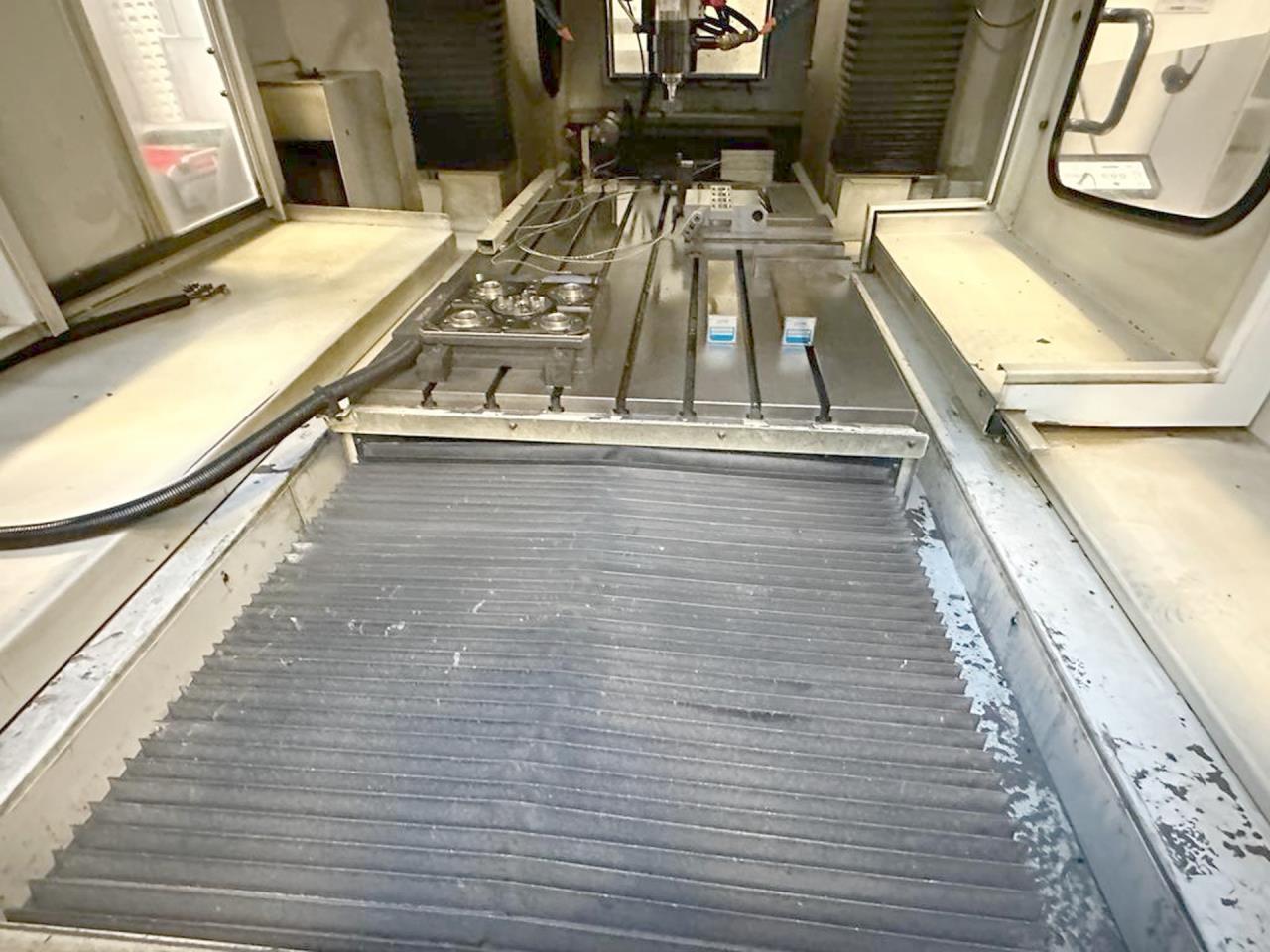

Table length 1440 mm
Table width 860 mm
Table load max. 800 kg
Longitudinal travel (X-axis) 1300 mm
Transversal travel (y-axis) 800 mm
Vertical travel (W-axis) 635 mm
Passage from grinding motor to table 0 - 750 mm
Max. grinding diameter 230 mm
with display-plate 360 mm
Passage between the columns 970 mm
Max. angle with taper grinding:
up to 16 °
Stroke speed Z-Axis:
Alternating stroke movement, infinitely adjust.
from Vmin. 0.5 mm/min
up to Vmax. 14000 mm/min
Stroke frequency Z 5 Hz
Stroke length Z, infinitely adjustable 170 mm
Radiale fine feed U-axis up to 5.5 mm
Planetary motion speeds: C axis Stepless
from: 5 rpm
up to: 300 rpm
Possible grinding spindle:
speeds:
from 4500 rpm
up to 80000 rpm
With air turbine max. 160000 rpm
Voltage 50 Hz 3x 400 Volt
Total power required 9kW
Machine weight about 7000 kg
Overall machine dimensions:
Length 3900 mm
Width 2460 mm
Height 3000 mm
Various accessories:

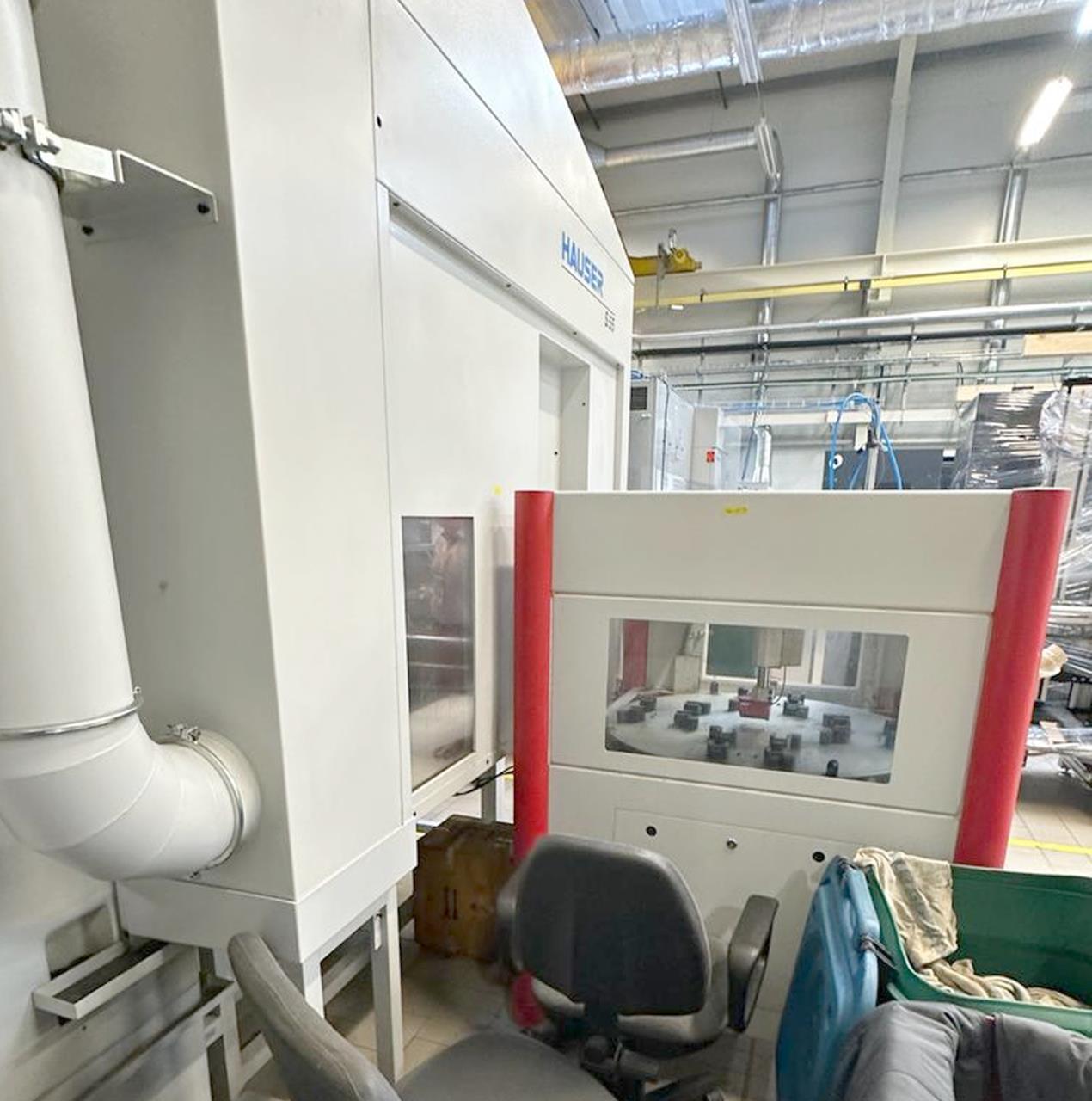

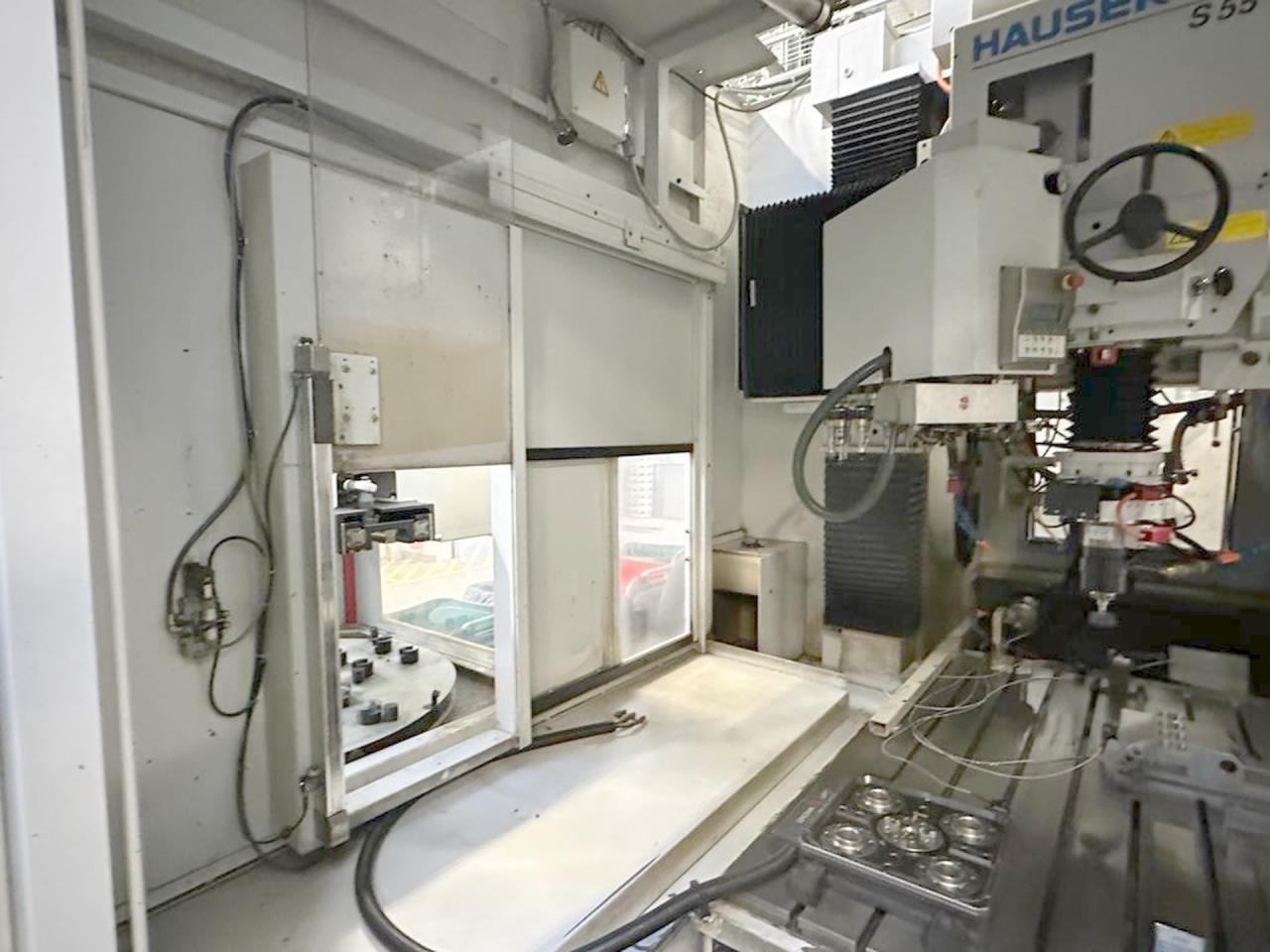

Pallet loader EROWA

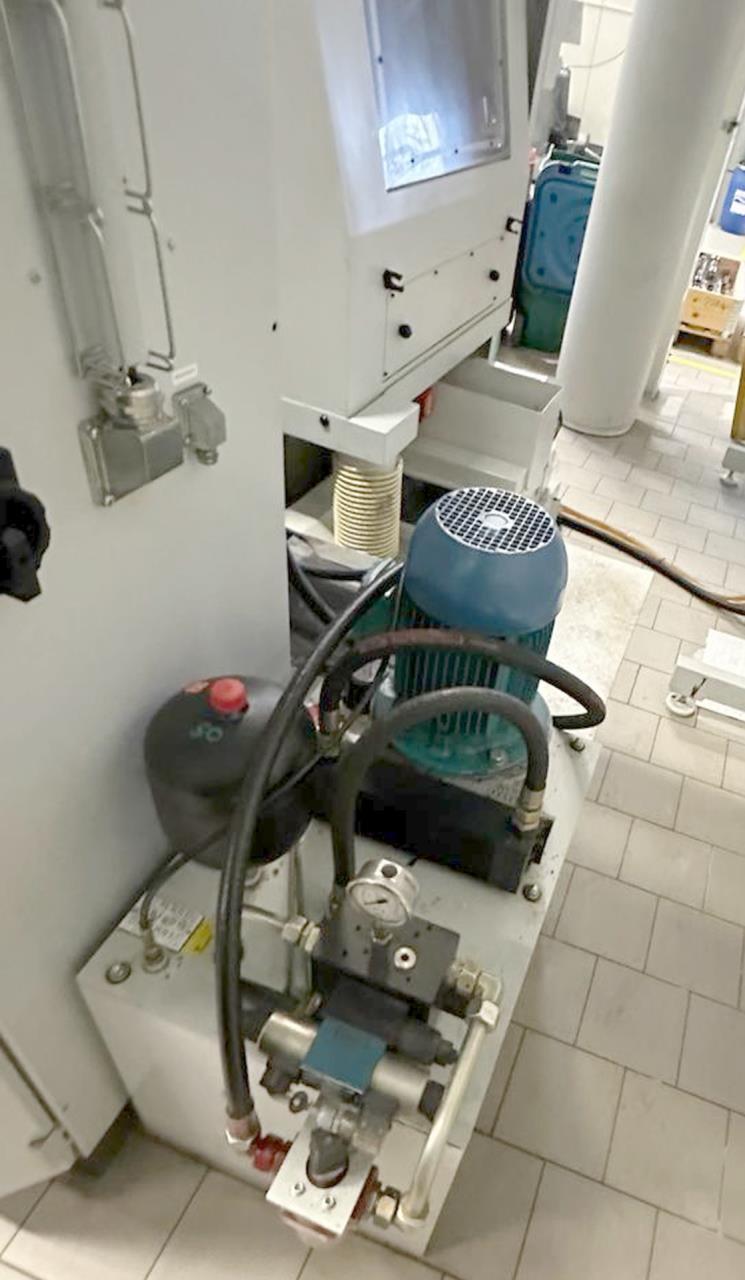

Coolant system
Lamp
MSS Multi-Sensonic-System

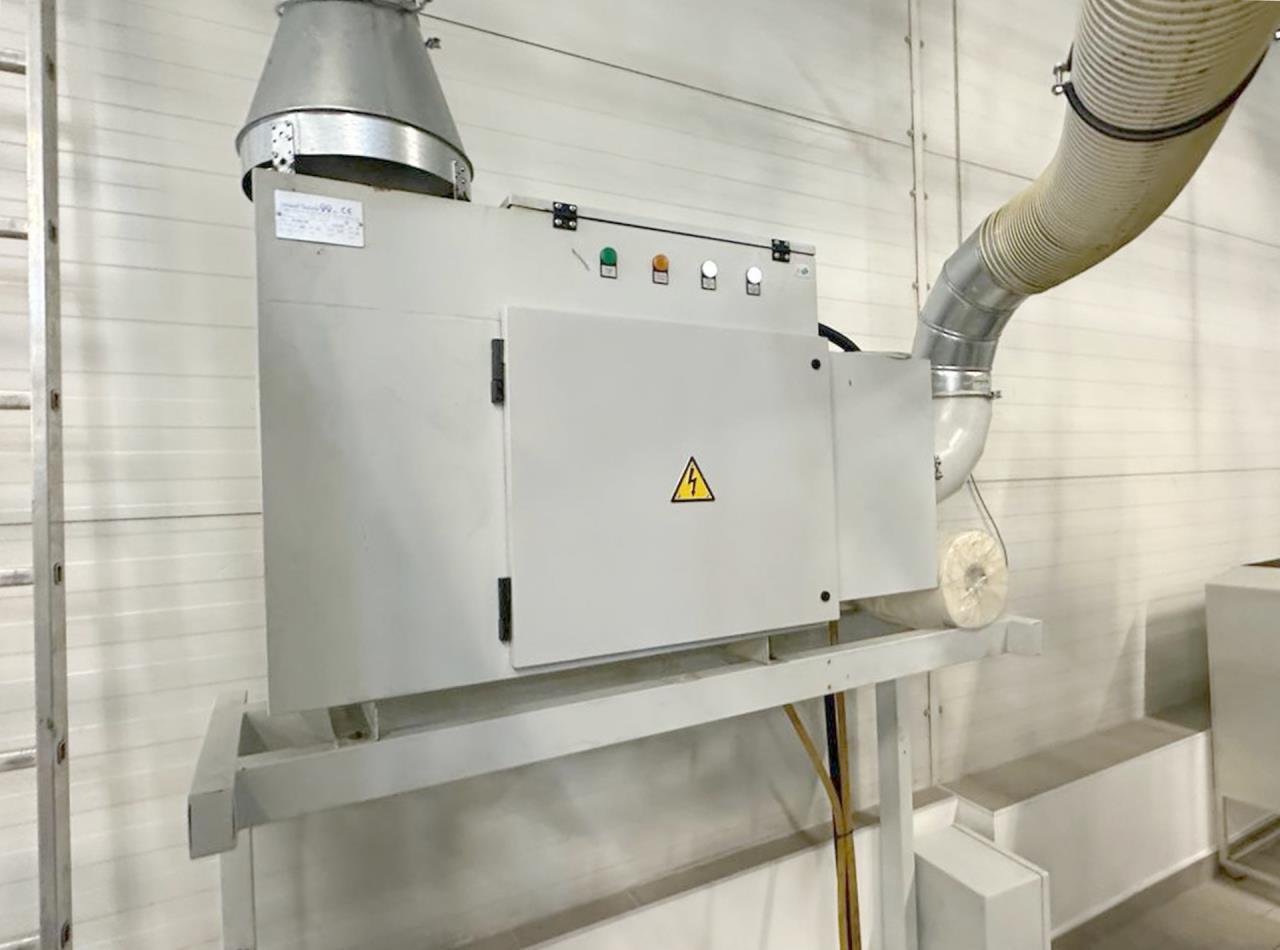

Oil mist extractor

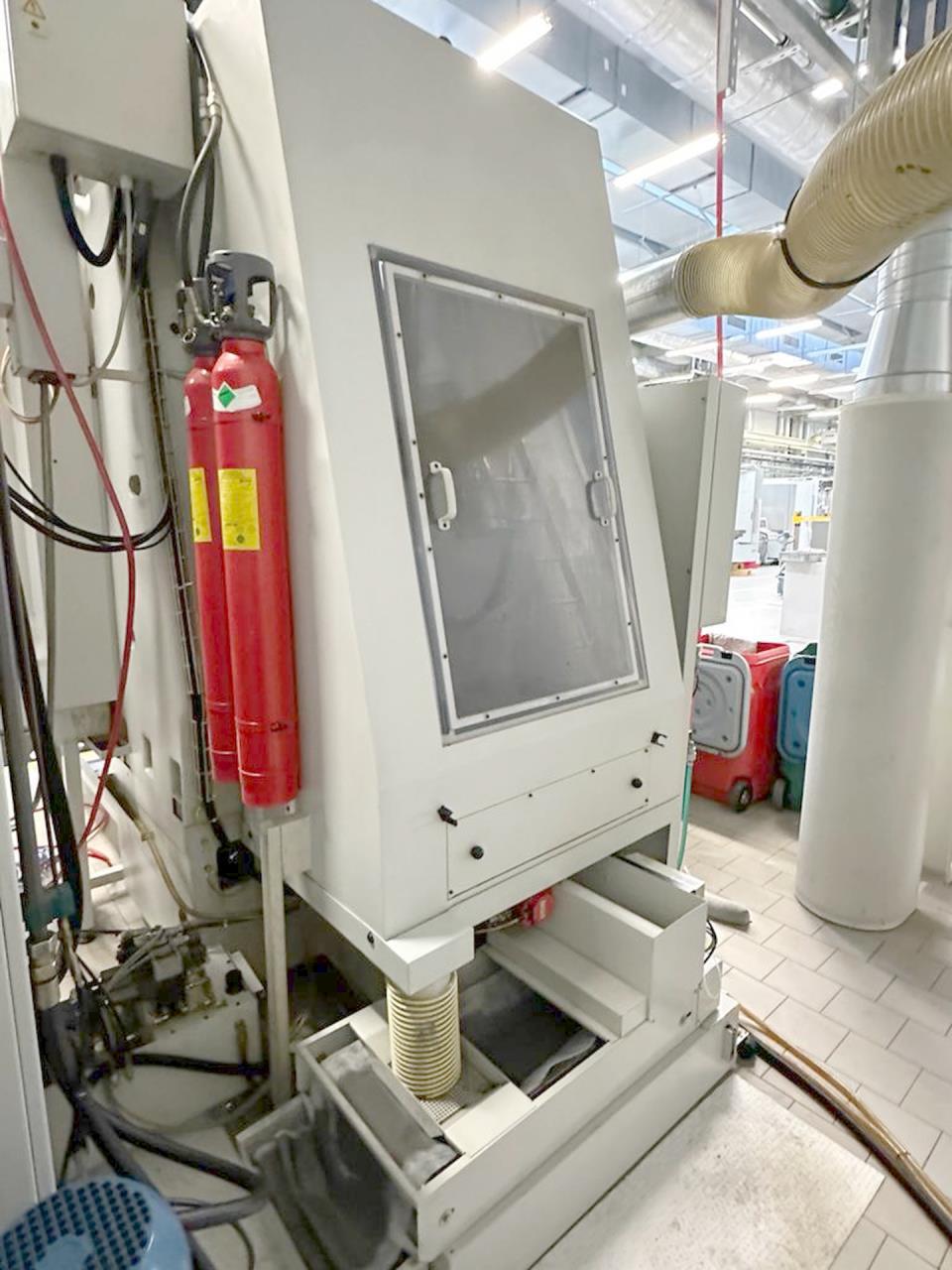

Fire extinguishing system
Tool changer: (number of tools) 12
