• Inventory number：90933

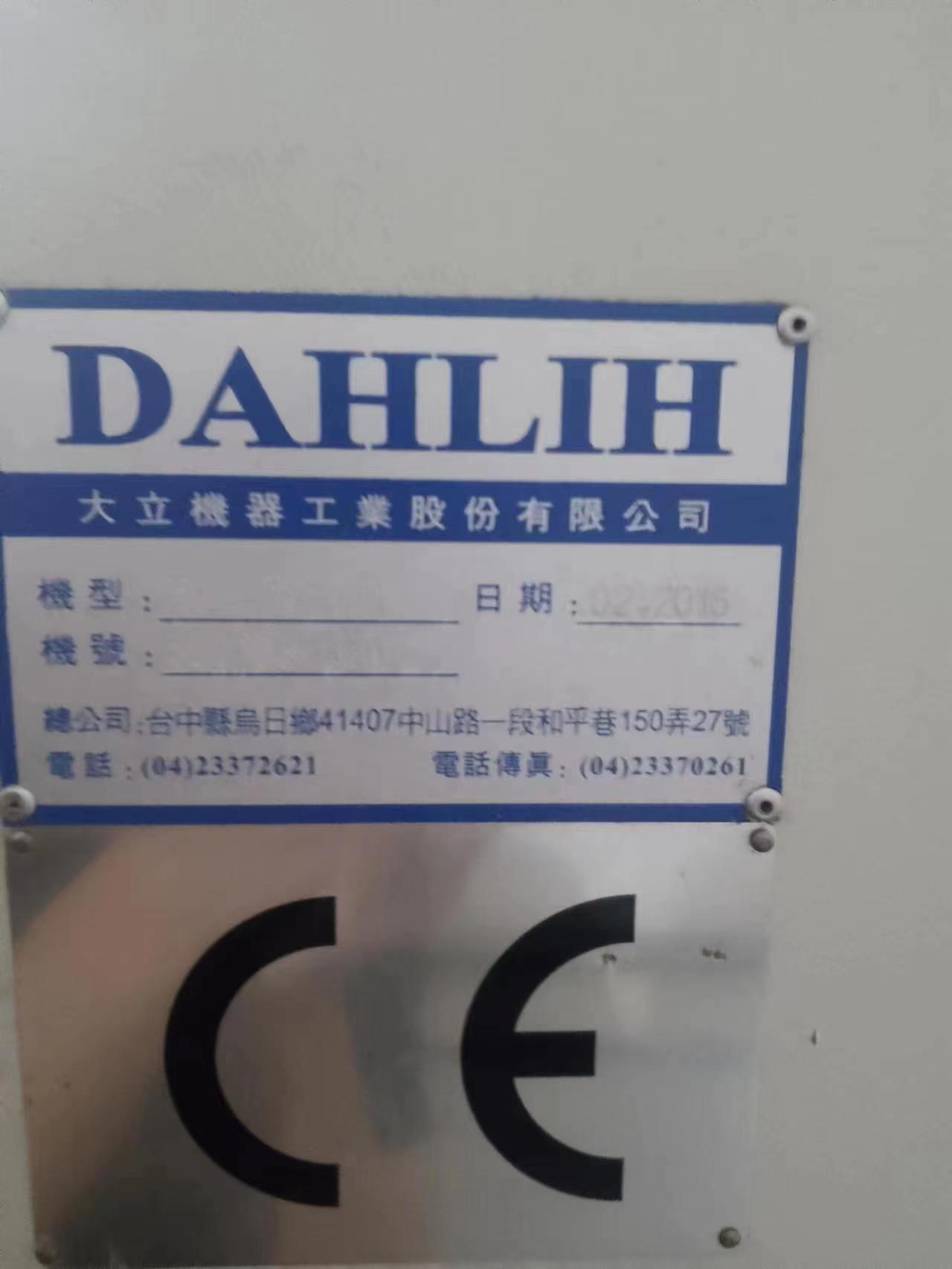

• Brand：DAHLIH

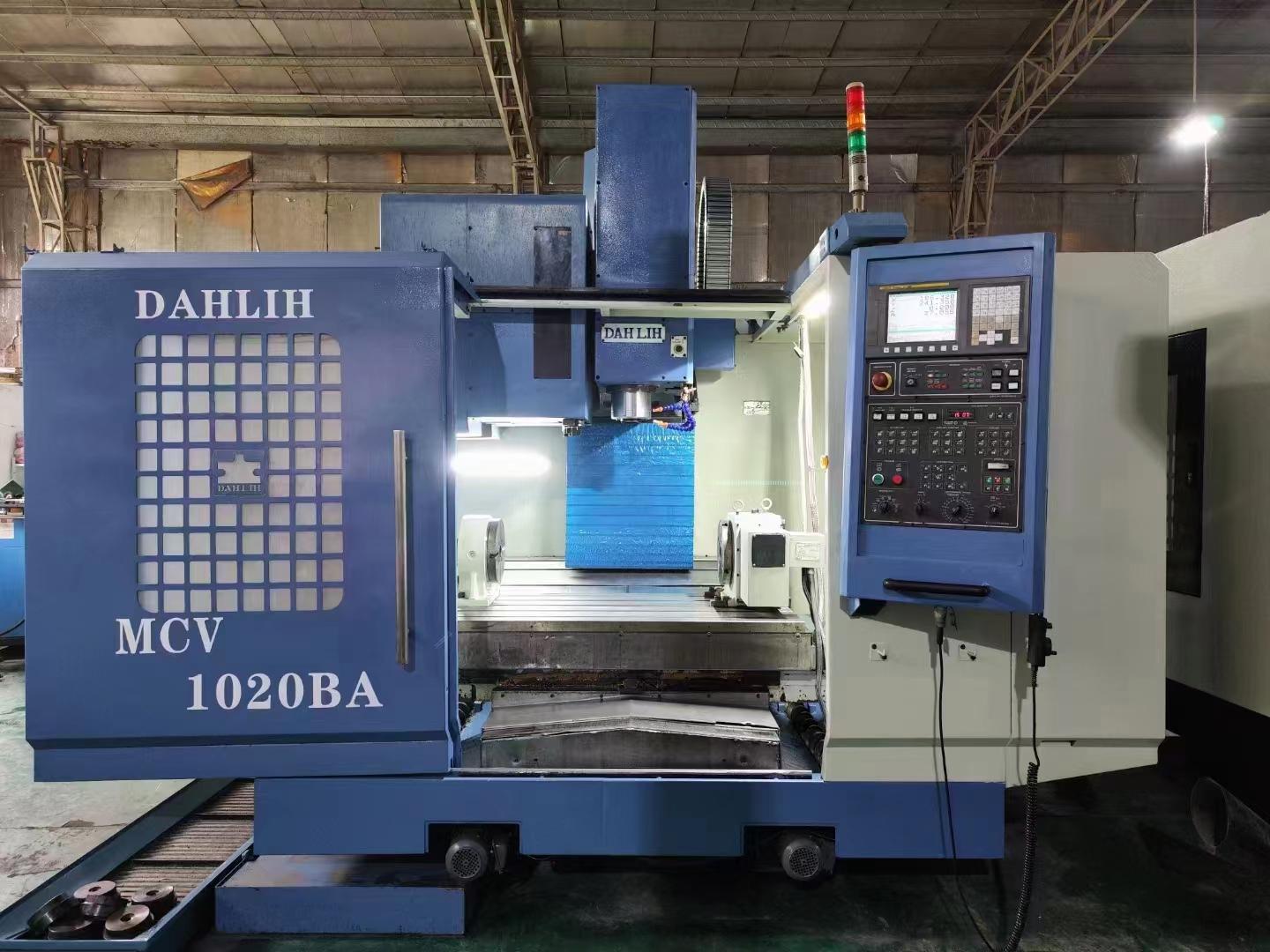

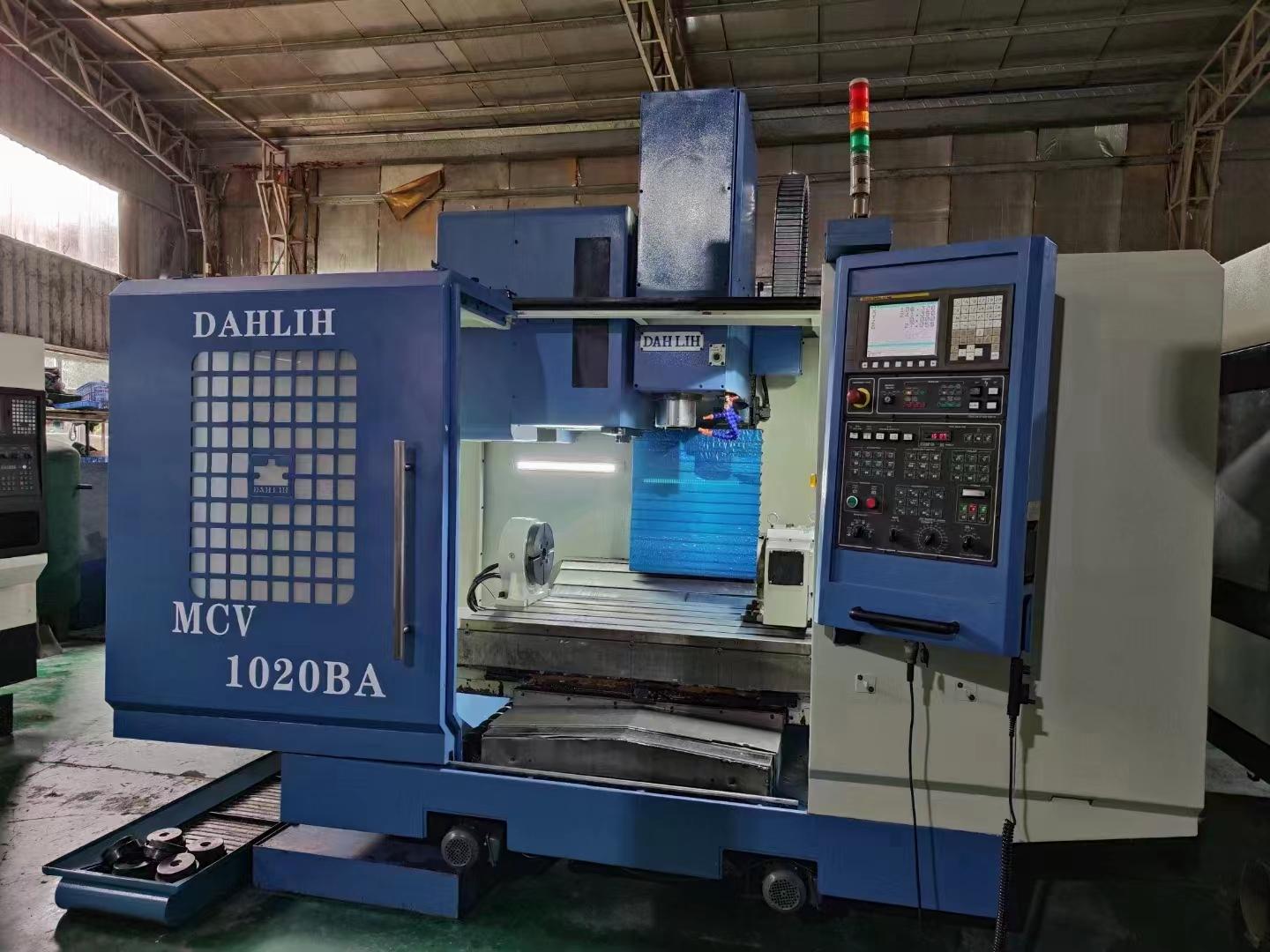

• Model：MCV 1020BA
• Origin：Taiwan of China
• Location：China
• Year：2016
• Create Time：2023-12-18

Specifications:

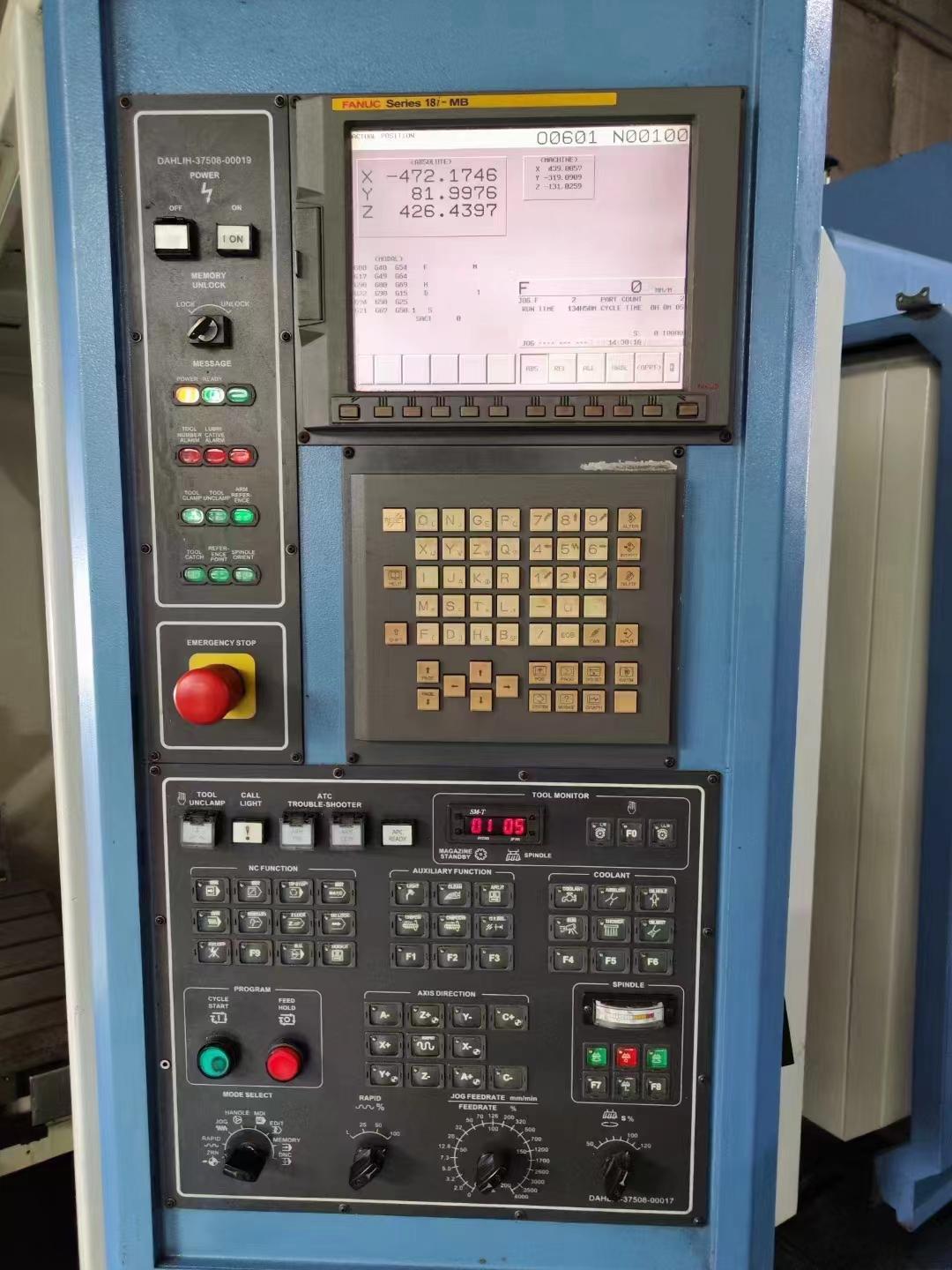

• CNC System: Fanuc 0iMD

  Tool holder type: BT40

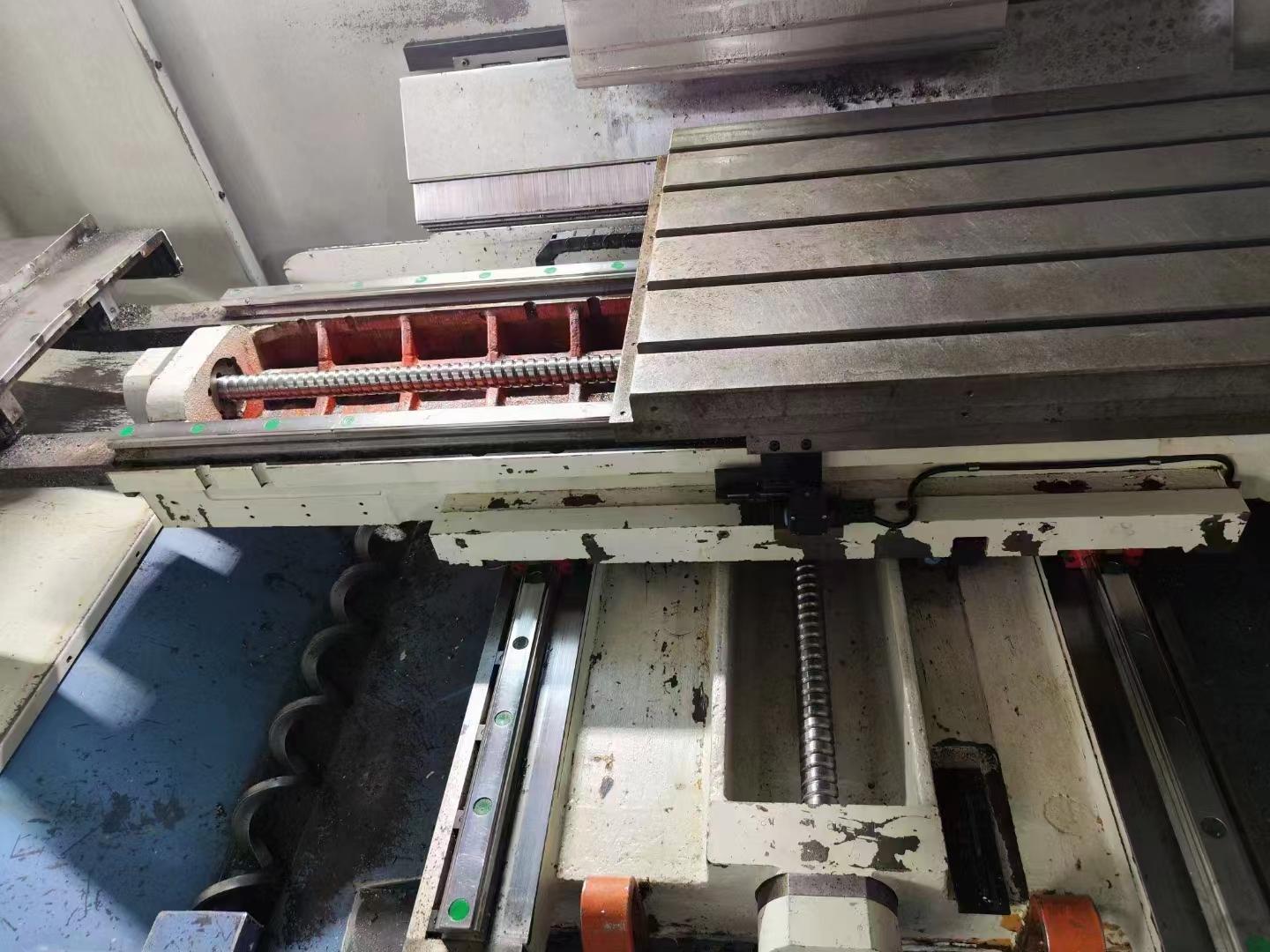

  Worktable size: 1250*660mm

  Worktable load: 1000kg

  Distance from spindle nose to worktable surface: 150~710mm

  X/Y/Z axes feed rate: 30/30/20mm/min

  Spindle speed: 10000/12000rpm

  Tool magazine: 24

  Three axes travel: 1020*550*560mm

  Main motor power: 5.5/7.5kw
