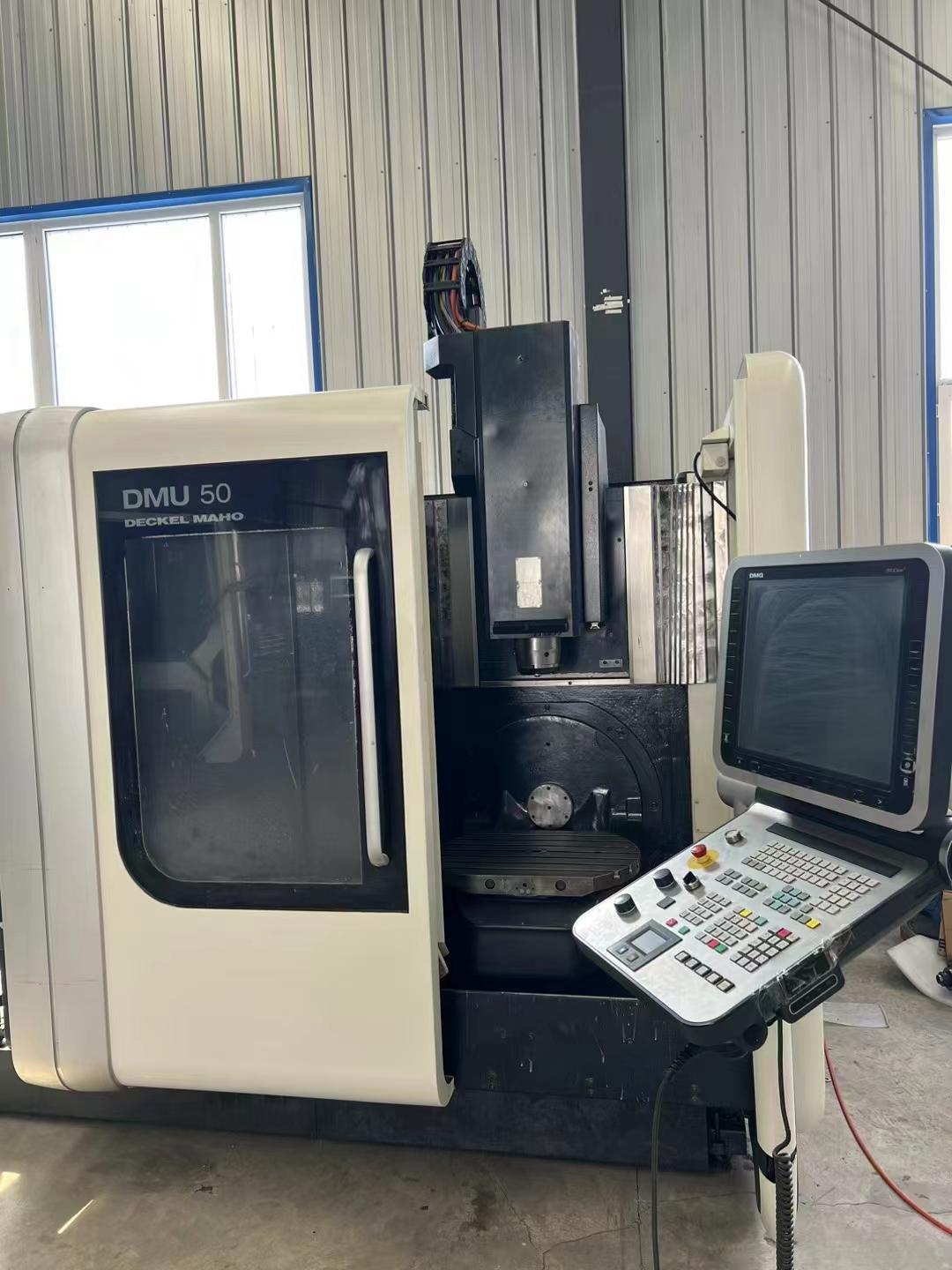

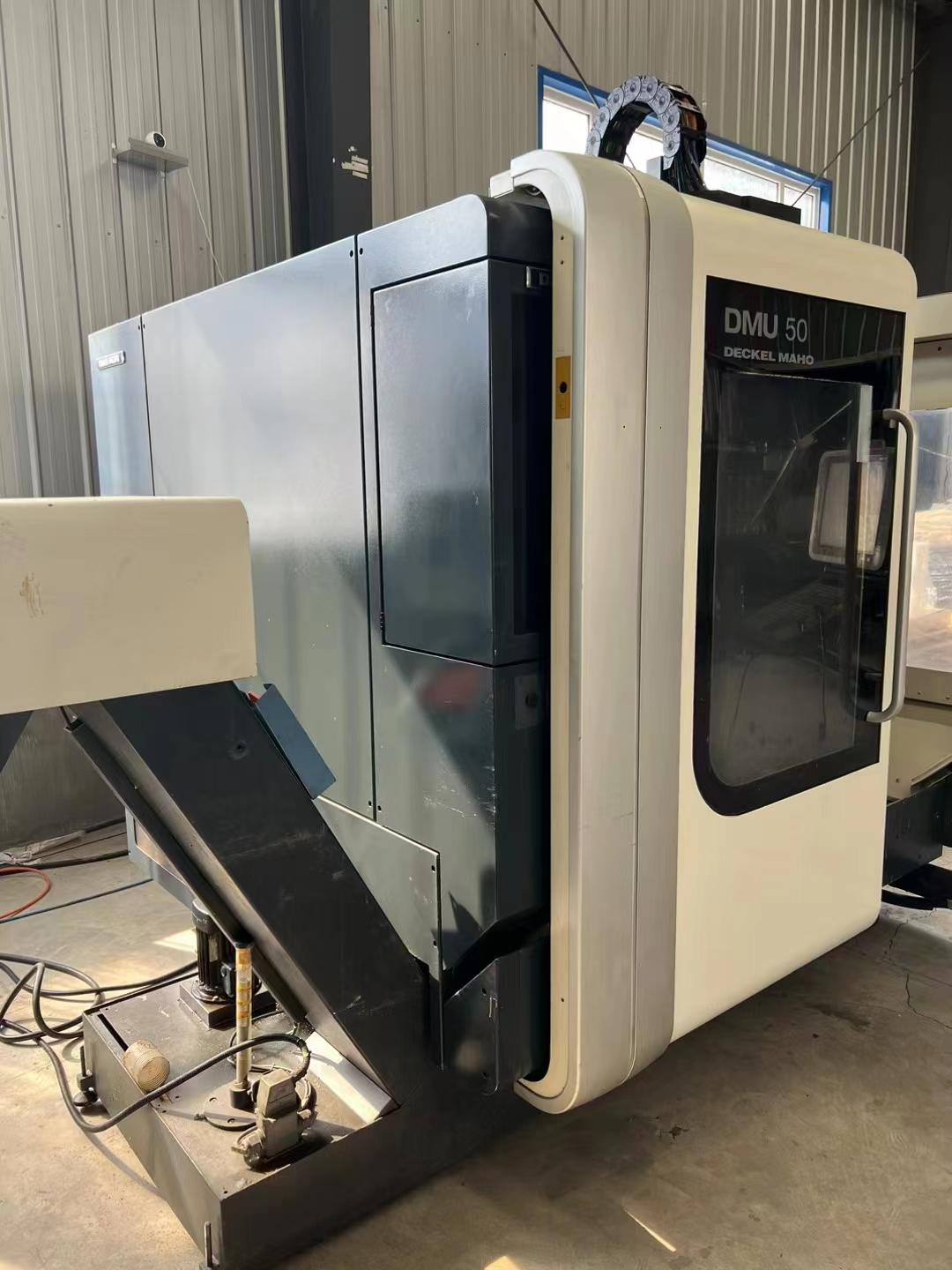

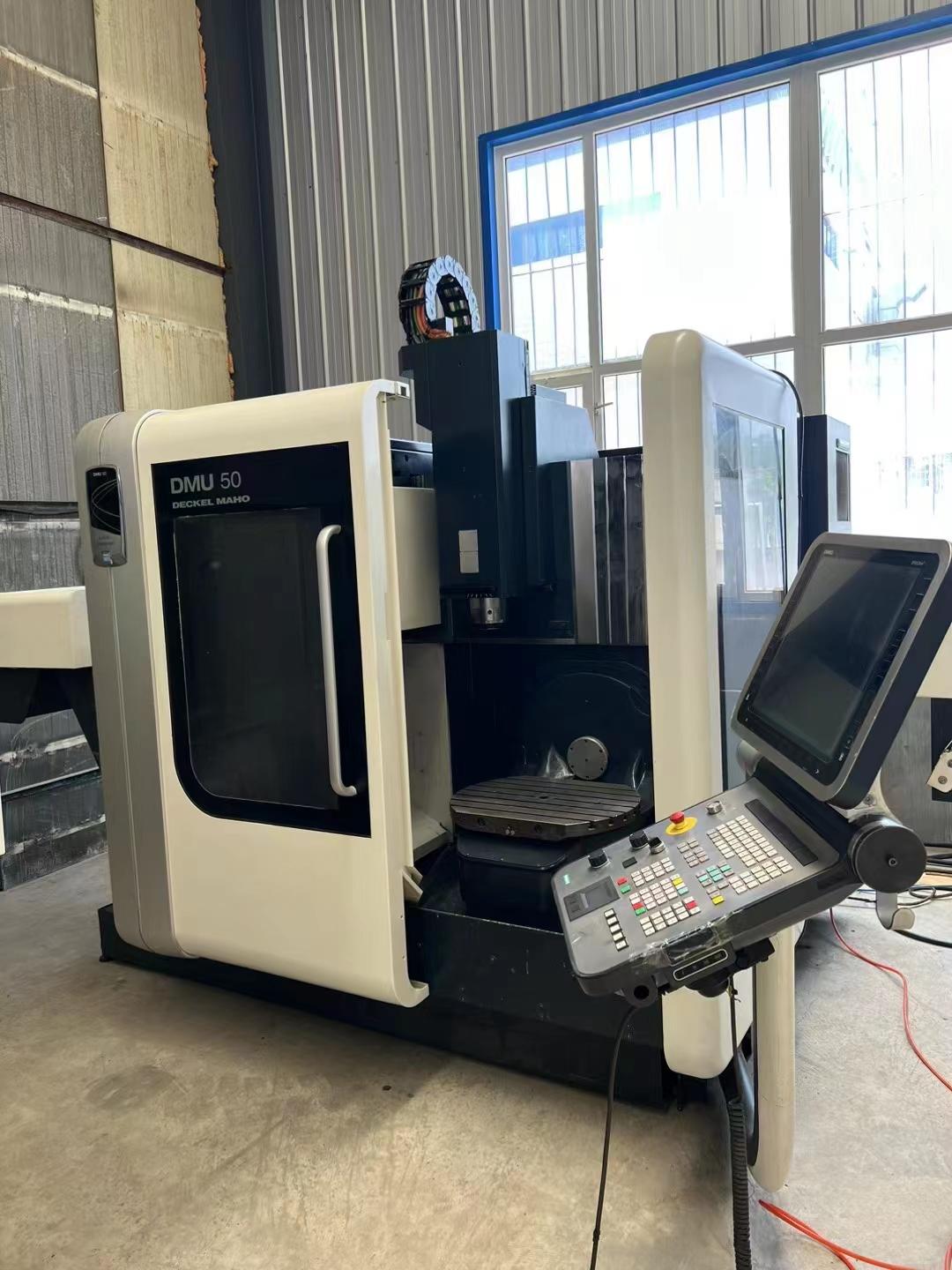

Specifications:

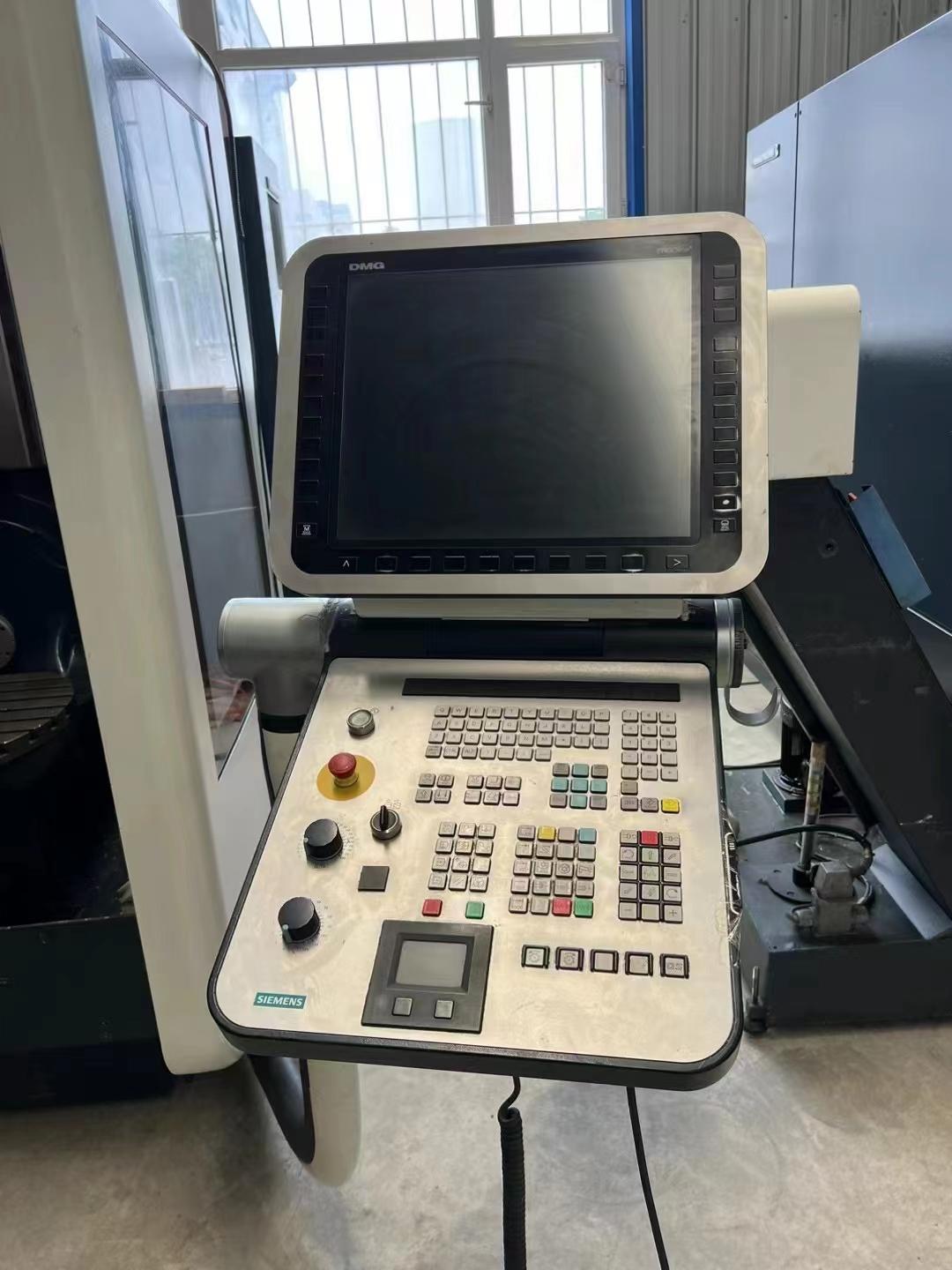

Siemens 840D SL Operate CNC System
Travel range: X/Y/Z axes 500/450/400 mm
Fast moving rate: 30 m/min
The options are:

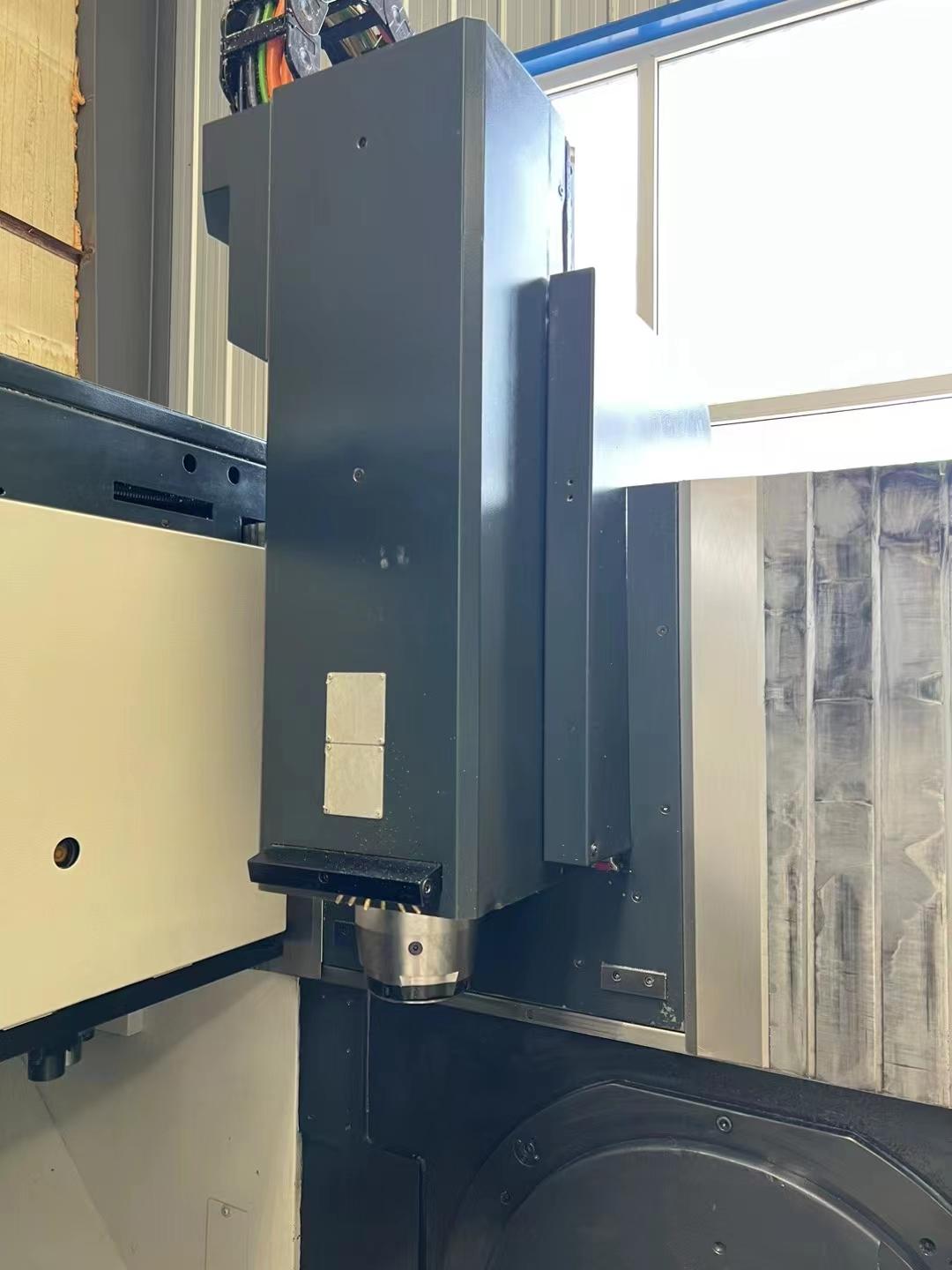

1. Spindle speed 20-18,000 rpm
SK40, Tool holder, DIN 69871
Power: 35/25 kW / (40/100%DC)
Torque: 130/87 Nm/(40/100%DC)
30 bit Tool magazine

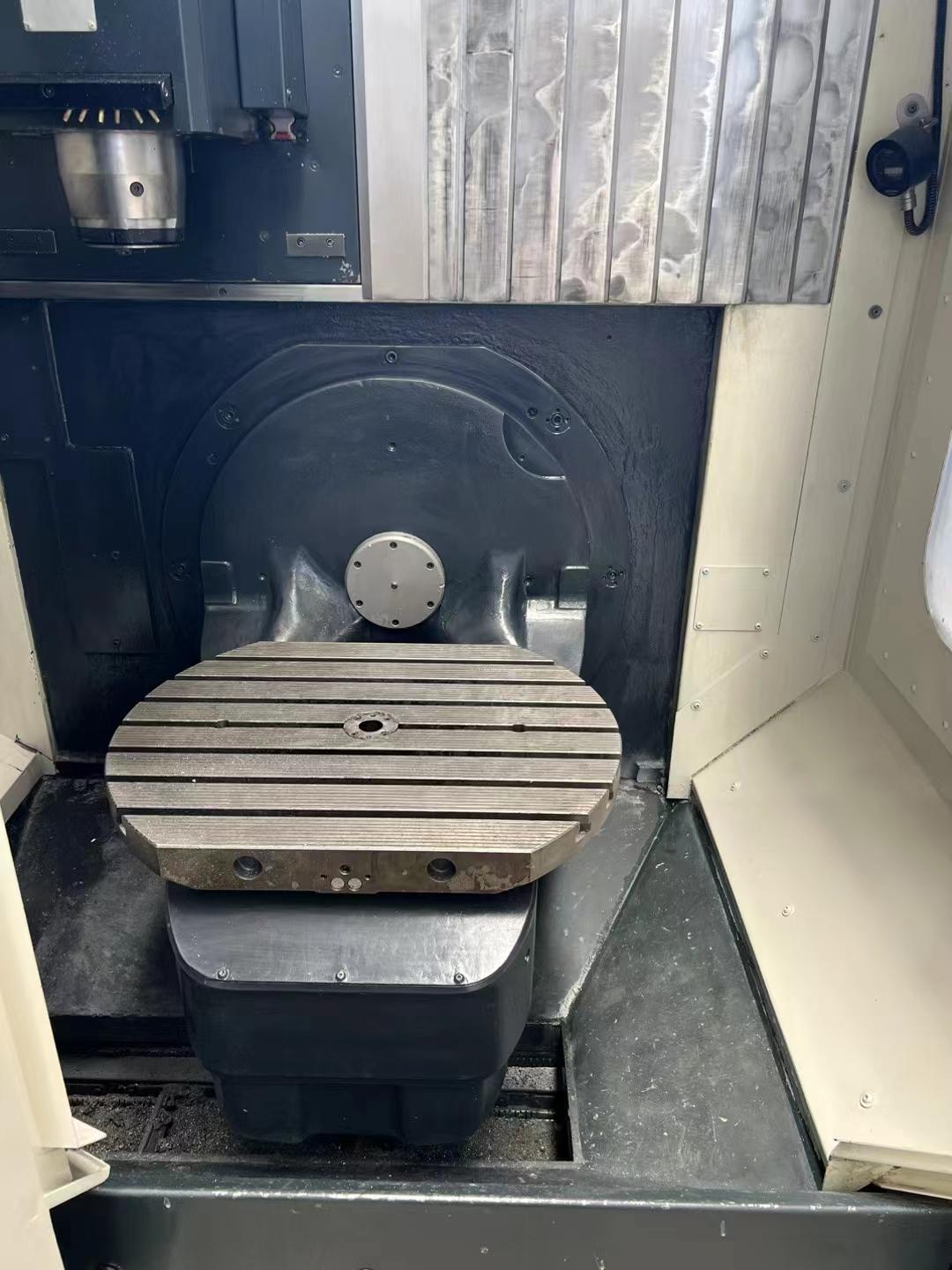

2. Rotary swing Worktable, simultaneous movement machining
Swing range - 5 to +110°, rotation axis 360°
Includes B and C axis direct measurement CNC System, and machining surface transformation
3. Forced cooling of electrical cabinet
4. Remote jog Tool holder
5. Water gun
6.X,Y,Z axis glass scale measuring CNC System, including positive pressure air
7. Infrared probe function (without probe)
8.3D quickSET, which controls and compensates the motion characteristics of 5-axis machine tools
(Hardware not included)
